Description

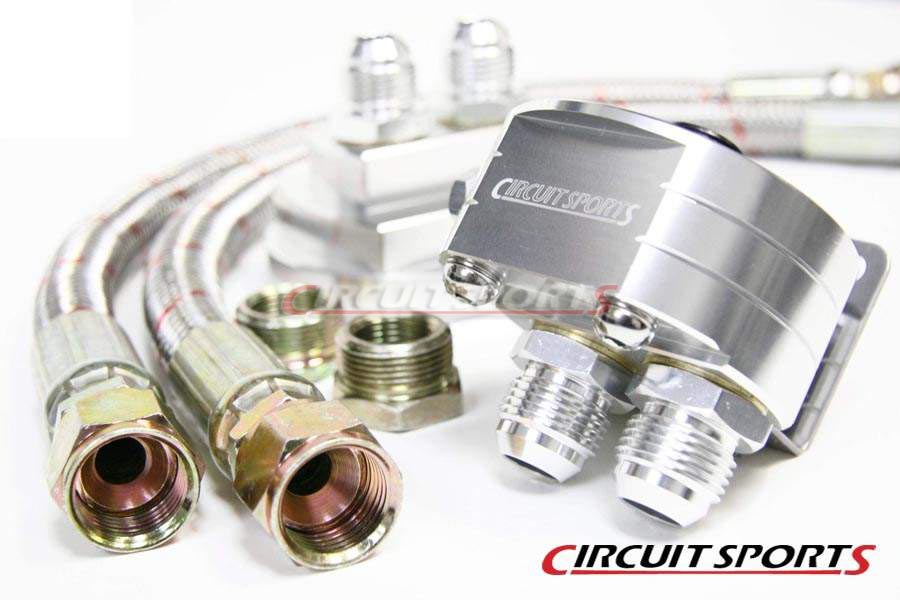

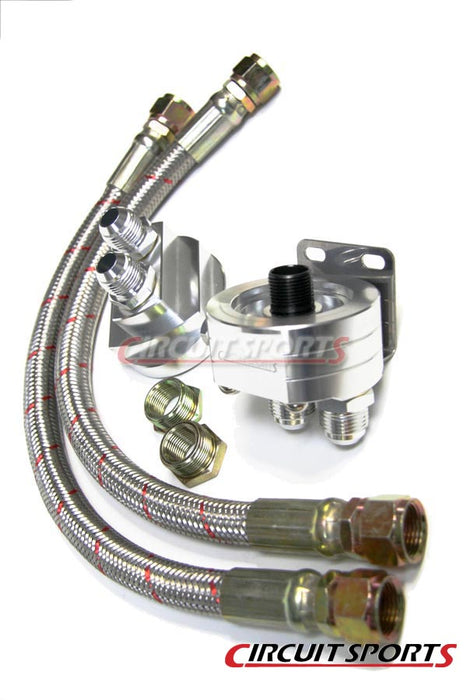

Circuit Sports oil filter relocation kit Universal consist of billet aluminum block and oil filter adapters. The relocation kit offers additional 1/8NPT side ports at oil filter adapter for oil temperature/pressure sensor inserts and industrial grade heavy duty -10AN steel braided oil lines for easy installation.

Some unique features this oil block offers are:

Two 1/8 NPT side ports for oil temperature / pressure sensor insert

Two -10 AN outlet for easy custom oil cooler installation

Two end caps included to block off sensor ports

Two 20 inch steel braided hoses

Engine side oil block adapter includes M20x1.5 and 3/4-16 UNF oil filter housing fittings

Filter side oil block fitting is M20x1.5 (fits most populer oil filter)

Fits 1989-05 Mazda Miata MX-5 B6ZE BP4W motor and retains factory spec oil filter. NOTE: The mounting bracket of the Oil filter block might need to be modified
