Circuit Sports Billet Aluminum Thermostatic Angled Oil Cooler Adapter Kit

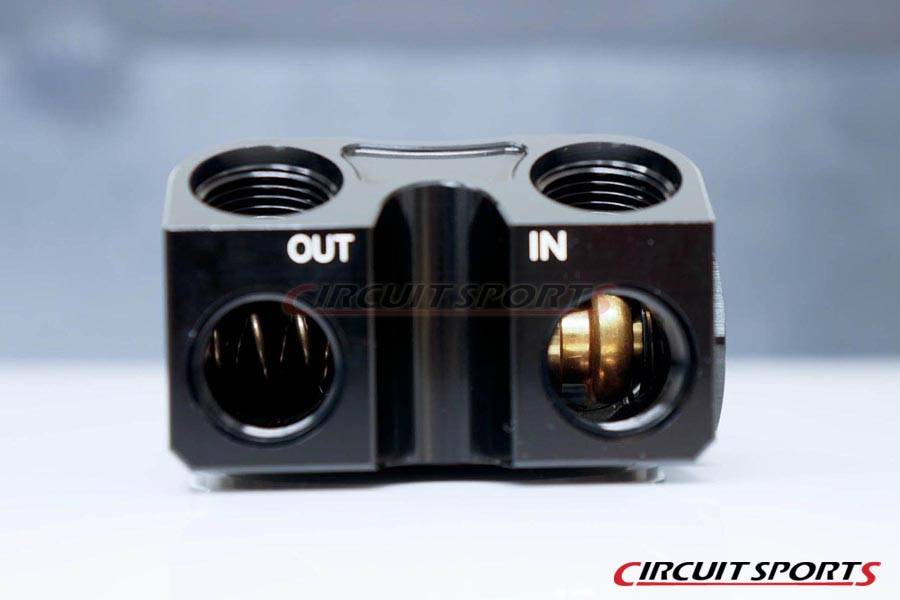

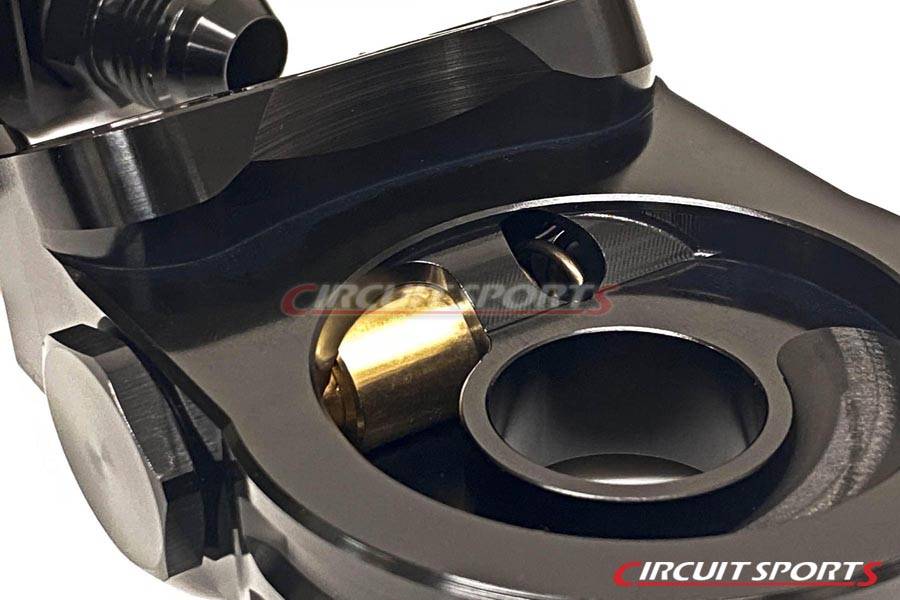

New restyled billet aluminum thermostatic oil cooler adapter for your high-performance motor, This adapter sandwich kit also has a built-in 180°F (82°C) thermostat which automatically bypasses the oil cooler until the oil has reached its minimum/safe operating temperature. When used in conjunction with an oil cooler results in quicker engine warm-ups and prevents oil viscosity loss in colder conditions. And Now, comes with Viton ring for ORB fittings to ensure a complete seal.

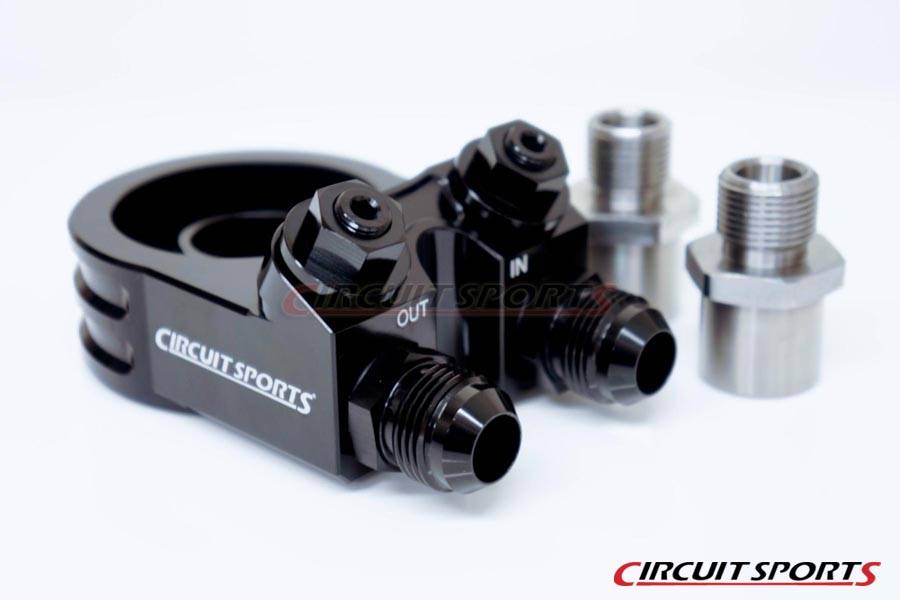

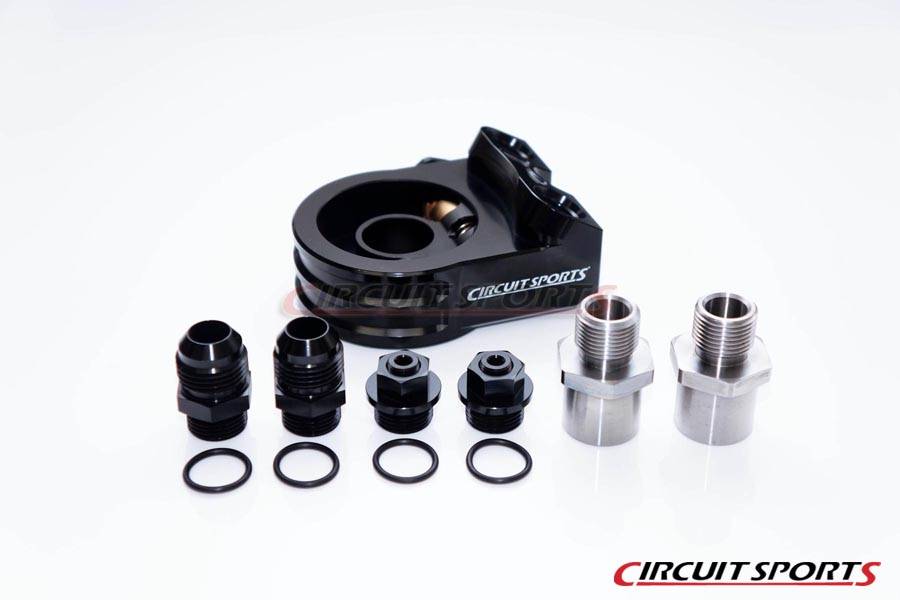

New V2 Kit comes with:

It is a straight bolt-on design to be use with -10AN Oil Cooler Kit.

It comes with 2 different oil housing center fitting, M20 x 1.5 and 3/4-16UNF.

2 X 1/8 NPT ports for oil temp/pressure sensor insert, (JIC flared 37º thread ORB end caps to block off sensor ports).

2 X -10AN JIC flared 37º thread ORB outlet port for easy oil cooler hook up.

NOTE: Universal application for motor that equipped with 3/4-16UNF or M20 x 1.5 fittings.

Example: Nissan S13 SR20DET uses 3/4-16UNF and Nissan S14/15 SR20DET uses M20 x 1.5

Please verify your filter adapter thread pitch before purchase.
