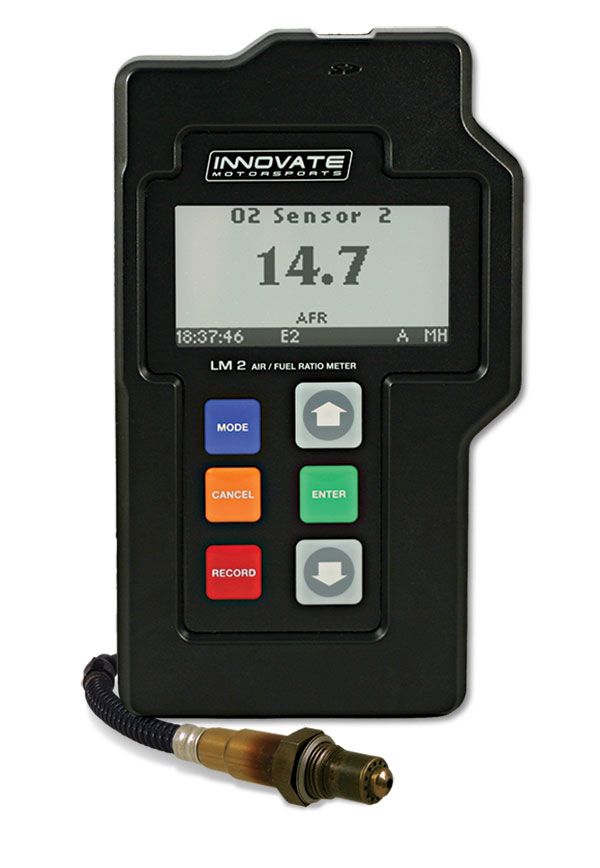

Innovate Motorsports LM-2 Single 02 Ultimate 18 ft Cable Shop Kit

SKU INN-3920
Sold out
Original price $ 672.80
Original price $ 672.80 - Original price $ 672.80
Original price $ 672.80
Current price $ 625.70
$ 625.70 - $ 625.70
Current price $ 625.70

The LM-2 combines an air/fuel ratio meter, a full-function 32-channel datalogger, and powerful software to deliver a complete tuning workshop for less than the cost of one dyno day. Whether you have a piggy-back fuel controller, race carb, aftermarket ECU, ODB-II tuning software, or a flash/chip programmer, an LM-2 is the tool you need to dial in maximum HP. The meter’s award-winning digital signal processing technology provides data on exactly how rich or lean an engine is running at any load. The LM-2’s self-calibrating circuitry also compensates for changes in temperature, altitude, and sensor condition.

Patented “Direct Digital” Wideband Technology

Wideband O2 Compatible with ALL fuel types

Single or Dual Channel Version Available

OBD-II Scan tool- read/clear DTCs and log up to 16 channels of CAN OBD-II Data

Log directly to SD card (included) * Playback log data on screen and/or with powerful LogWorks software (included)

Large high-contrast graphics LCD

Built-in RPM converter (direct frequency or with optional inductive clamp)

4 fully-differential analog inputs

2 configurable linear analog outputs

Positive lock connectors for all connections

Innovate MTS serial IN and OUT

USB connection to your PC

The LM-2 also features two fully programmable linear analog outputs to connect to analog gauges, dyno computers, ECUs, piggyback controllers, and other devices with analog inputs. Analog output 1 comes setup from the factory ready for narrowband simulation; analog output 2 is configured as 0 volt = 7.35 AFR and 5 volts = 22.39 AFR. With the provided LM Programmer software these analog outputs may also be configured by the user.
