HKS Single Turbo Setup Kit w/ GTIII-4R Turbo For Mazda RX-7 FD3S 13B-REW

by HKS
SKU HKS14020-AZ003
Save 10% Save 10%
Original price $ 4,900.00
Original price $ 4,900.00 - Original price $ 4,900.00
Original price $ 4,900.00
Current price $ 4,410.00
$ 4,410.00 - $ 4,410.00
Current price $ 4,410.00

HKS Single Turbo Setup Kit w/ GTIII-4R Turbo For Mazda RX-7 FD3S 13B-REW

  • HKS provides an easy solution of a single turbine set up kit for GTIII-4R turbo.
  • This kit may require modification or additional fabrication of parts such as intake pipes.
  • A great value combination with GTIII-4R.

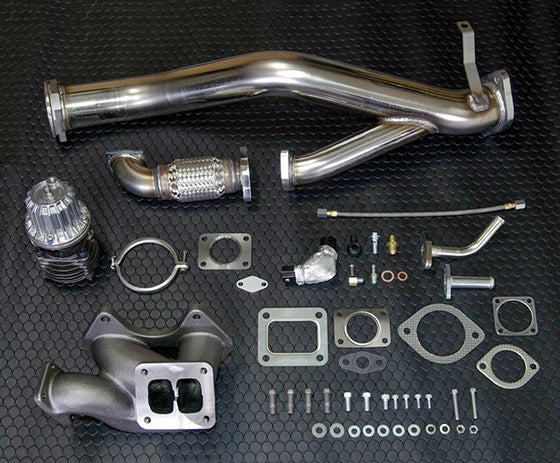

Kit Include: HKS GTIII-4R Turbo, HKS cast Exhaust Manifold, HKS Special Wastegate, Wastegate return pipe, oil inlet and outlet pipe, flange, gasket, bolts and nuts etc.

NOTE: This kit may require modification or additional fabrication of parts such as intake pipes. (See Instruction).

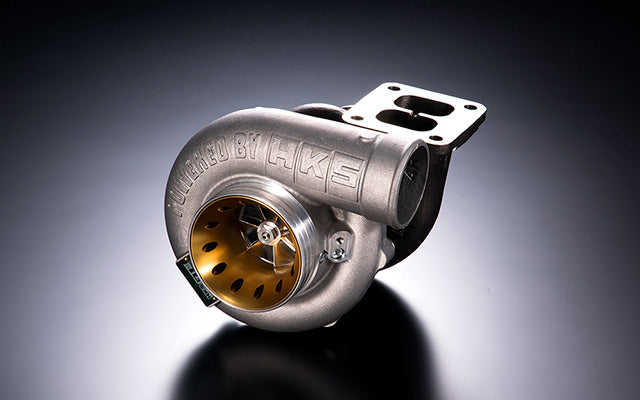

About GTIII-4R Turbo:

  • A successor model of TO4Z. Compact in size, but withstandable over 700PS.

  • Highly reliable MHI high performance CHRA & highly durable aluminum forged impeller are well-balanced.

  • Ported shroud function is selectable using an adapter. Replacing the position of the bolt securing ported shroud is able to keep the intake air path to reduce surging.

  • Impeller wheel rotation sensor compatible. (The sensor will be available separately.) Easy replacement with TO4Z series turbine and the turbo kit using TO4Z. (Oil inlet / outlet are designed for GTIII-4R). * Water cooling line is not available.
