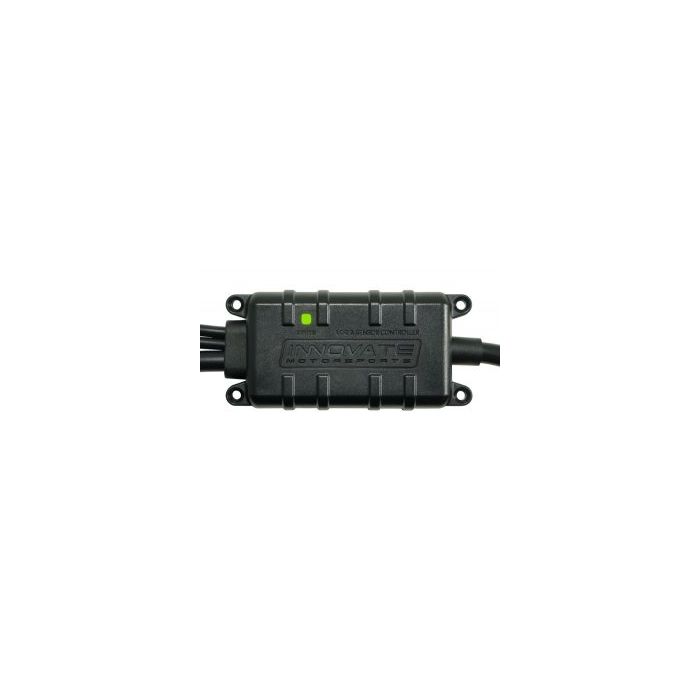

The evolution of the world’s most popular stand alone digital O2 sensor controller, the Innovate Motorsports LC-2 builds upon the legacy of the LC-1 by adding simplicity and leading edge technology. The LC-2 utilizes 100% digital wideband air/fuel ratio technology on the market! The LC-2’s patented award-winning DirectDigital™ signal processing technology provides data on exactly how rich or lean an engine is running at any load. The LC-2’s self-calibrating circuitry also compensates for changes in temperature, altitude, and sensor condition. The LC-2 includes a digital input/output, 2 full-programmable analog outputs, and is ideal for applications such as dynamometers, data acquisition systems, standalone ECUs, and gauges. The LC-2 can also be "daisy-chained" for cost-effective individual cylinder monitoring, and is fully compatible with our Modular Tuning System (MTS). Key features include:
Patented DirectDigital™ Wideband Technology
Wideband O2 Compatible with ALL fuel types
Ability to calibrate O2 sensor for maximum accuracy
Integrated dual-color status LED (Green/Red)
*2-Configurable linear 0-5v analog outputs
Optional sensor cable lengths available: 3ft, 8ft (Included), and 18ft
Positive lock connectors for all connections
Innovate MTS serial in/out
Serial connection to your PC
Real-time display data on screen and/or with powerful LogWorks software
*Two fully programmable linear analog outputs to connect to analog gauges, dyno computers, ECUs, piggyback controllers, and other devices with analog inputs.
Analog Output #1 (Yellow) is configured as 0 volt = 7.35 AFR and 5 volts = 22.39 AFR; Analog Output #2 (Brown) 1.1 volt = 14 AFR and .1 volt = 15 AFR. With the
provided LM Programmer software these analog outputs may also be configured by the user.

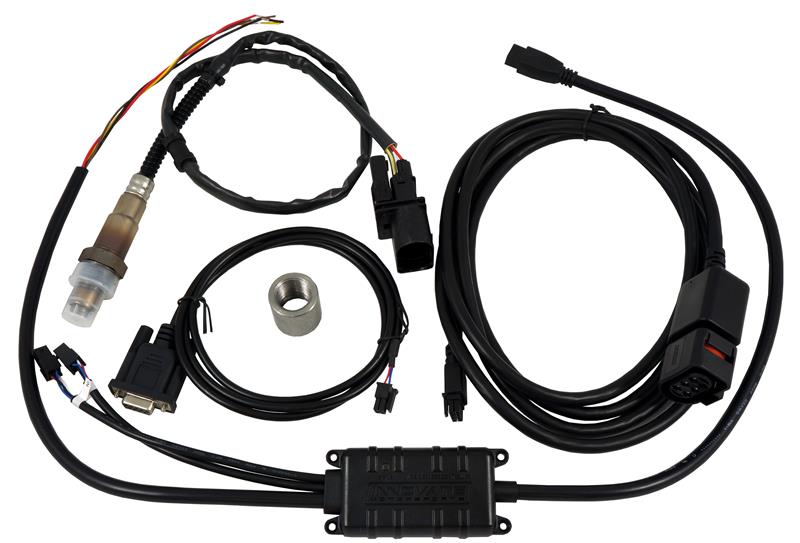

LC-2: Complete Lambda Cable Kit (8 ft.). Includes: LC-2 Controller, Bosch Wideband O2 Sensor, 8 Ft. Sensor Cable (Overall length 10 ft.), 1" Mild-Steel
Exhaust Bung, Program Cable, and Manual.
