Tomei LSD 1.5 Way For 1989-93 Mazda Miata MX-5 NA6CE B6 w/Open or Viscous

SKU TM-TC101B-MZZA1
Sold out
Original price $ 990.00
Original price $ 990.00 - Original price $ 990.00
Original price $ 990.00
Current price $ 891.00
$ 891.00 - $ 891.00
Current price $ 891.00

Note: If you are not sure whether this LSD would work on your car, please send us a message with the information about your car and we will find out for you.

Application Spec.

For 1989-93 Mazda Miata MX-5 NA6CE B6 with STD Open or Viscous Diff
MT/AT Transmission
Location: Rear
For Manual transmission with STD Viscous diff, Side Shafts T005-27-270B x 2 / Circlips F001-25-421A x 2 (both left and right need to be exchanged)

TC101B-MZZA1 - LSD Specs:

1.5 Way Multiple Plate Clutch LSD
The Technical Trax LSD unit is based on the multiple plate clutch design. With this design the multiple friction clutch plates are located between the side gears and the differential casing and utilize the pinion and cam gears. This is a torque proportional type LSD. In the usual differential arrangement it is connected to both left & right axles directly, when the driving force of one side differs in speed the pinion gear with the cam angle forces the clutch plates to compress and grip to in effect transfer the driving torque evenly to both axles. The T-TRAX ADVANCE has adopted this system which has proven its effectiveness as the best for 2WD applications.

12 discs / size SS
External Teeth Friction Disc: 6 Plates
Internal Teeth Friction Disc: 6 Plates
Spring Disc Toothless: 2 Plates
Initial Torque Pre-setting: 4.0-5.0kg.m

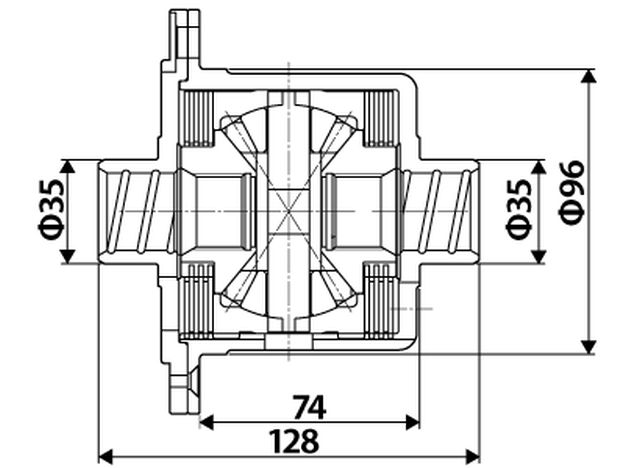

LSD Unit Specs:

Size of ring gear bolts: M10
Number of ring gear bolts: 8
Ring gear bolts PCD: 114mm

Side flanges:
Number of teeth: 24T
Snap ring: Right side - Without / Left side - Without
Washer: Both side - Without

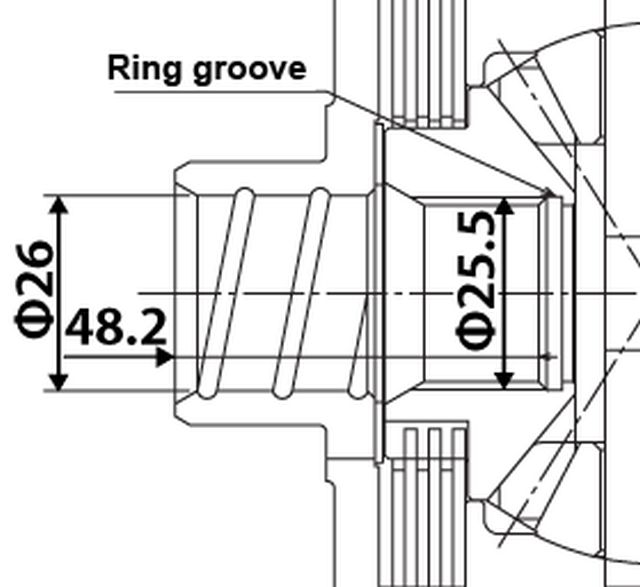

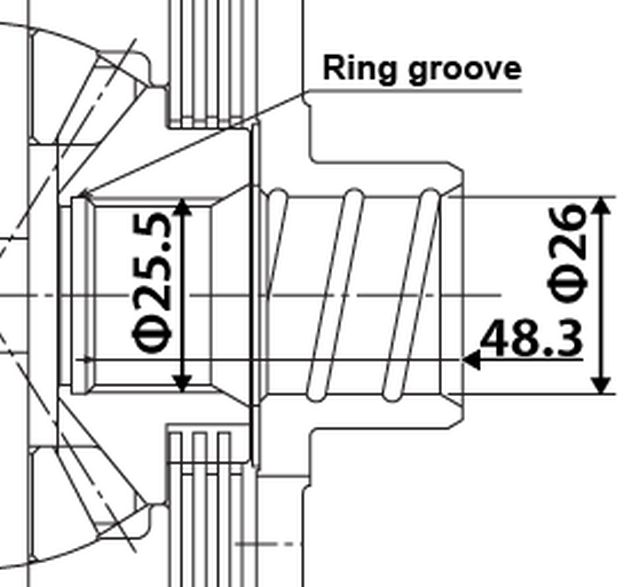

Snap ring groove: Right side - With / Left side - With

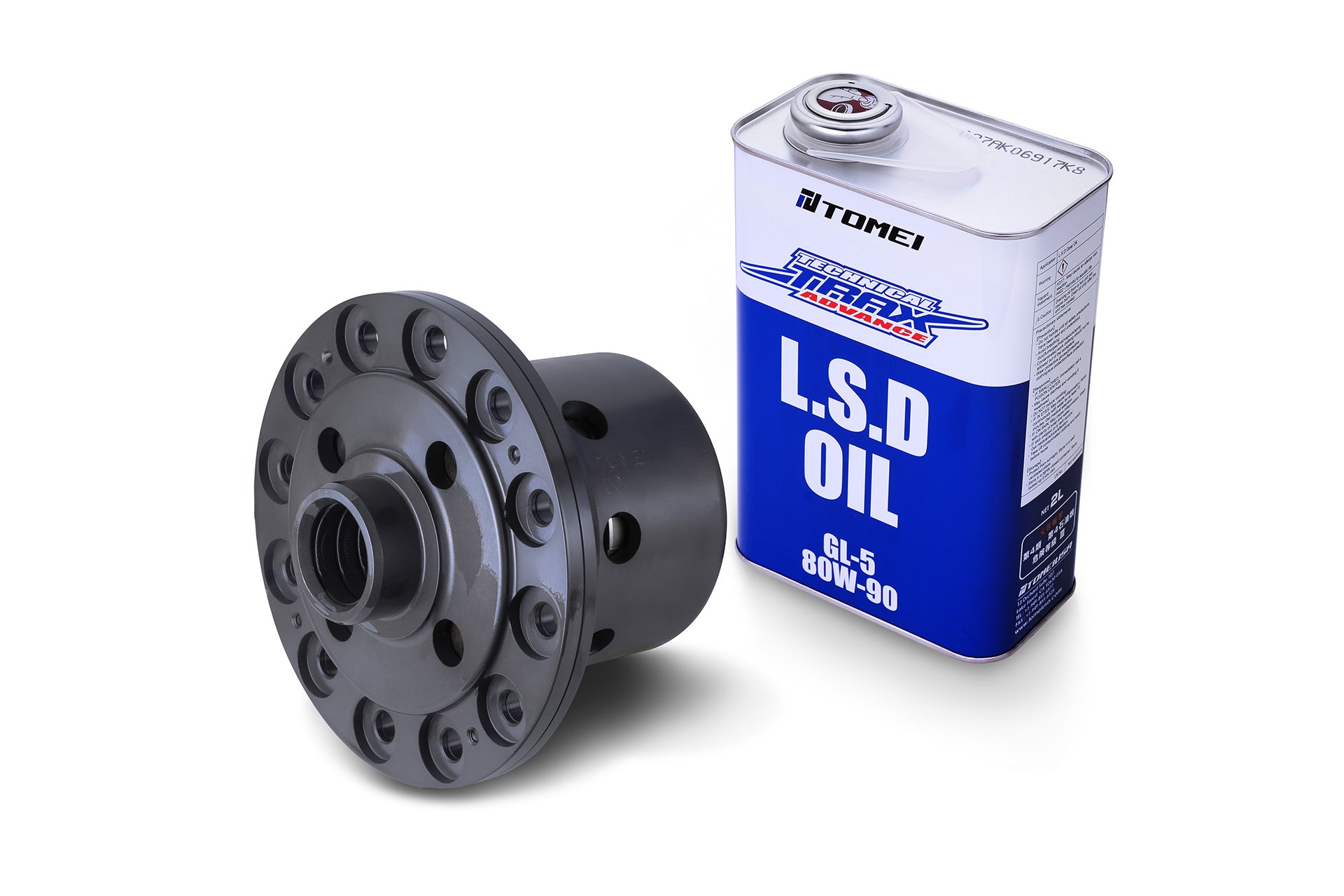

Includes:

Tomei LSD x 1
2 Litters of Low Friction High Grade Oil x 1
