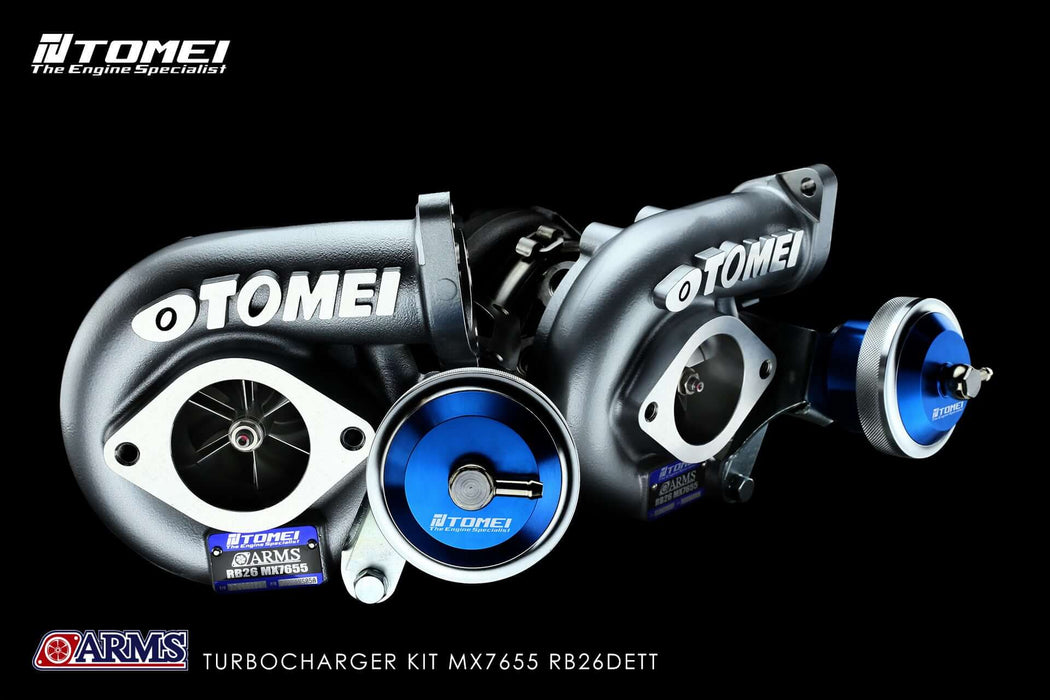

Tomei ARMS BX7655 B/B Turbo Kit for Nissan GTR GTR32, GTR33, GTR34

Engine: RB26DETT

Part#: TB403A-NS05A

Turbo Specs:

Target HP: 580
Bearing Type: Ball Bearing
Initial boost Setting: 1.0kgf/cm2

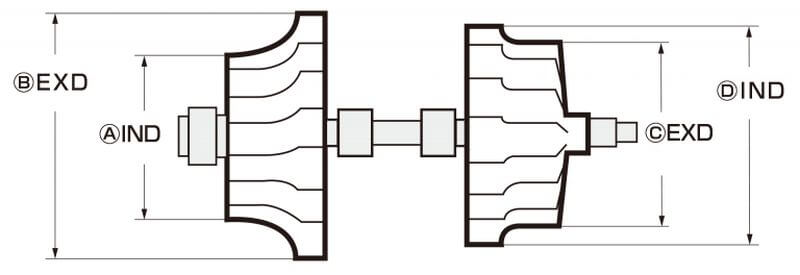

Compressor Wheel: (See Picture)
#A IND: 50.3mm / #B EXD: 68.0mm
Trim: 55
Blades: 6/6
Material: A2618
Production: CNC Billet

Turbine Wheel: (See Picture)
#C EXD: 47.5mm / #D IND: 56.0mm
Trim: 72
Blades: 9
Material: K418
Production: Cast

Compressor Housing:
IND: 51.3mm
EXD: 38.75mm
A/R: 0.74

Turbine Housing:
IND: T25
A/R: 0.73

Vacuum Fitting Type: Swivel Nipple

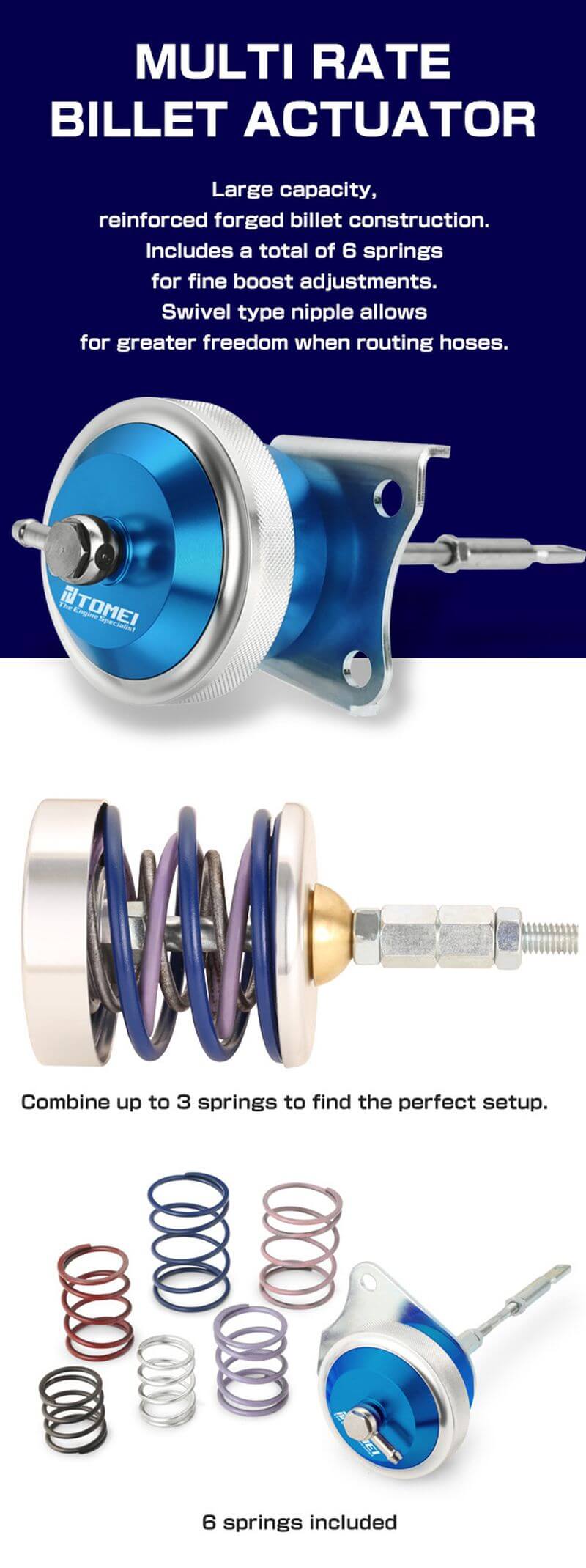

Springs: 8 Springs for find boost adjustments
Production: CNC Billet

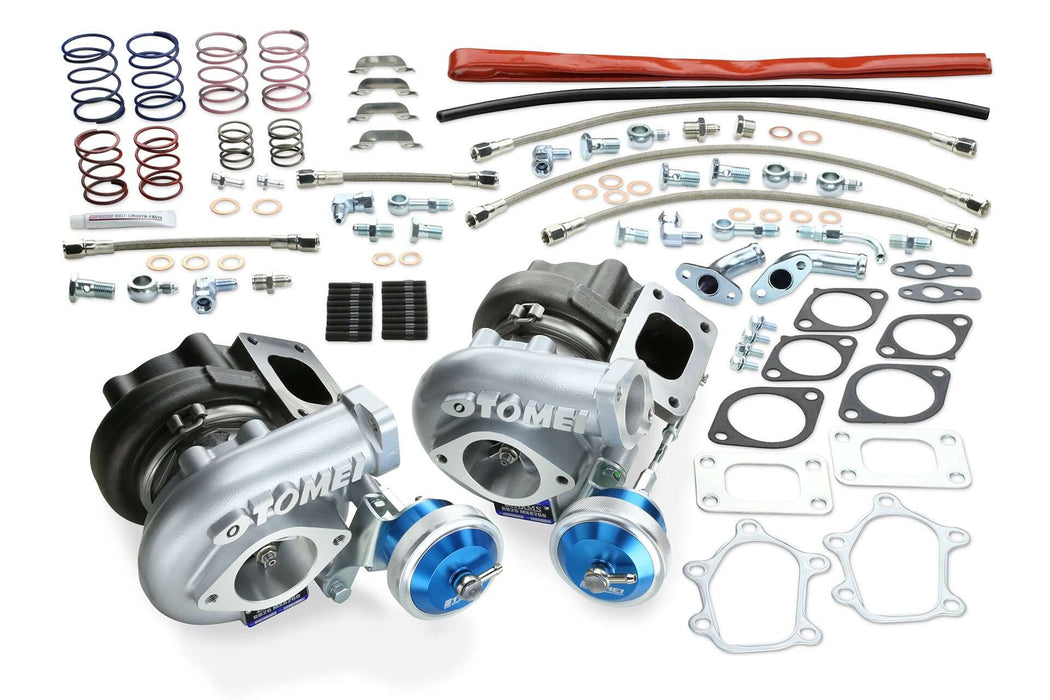

Turbo kit Includes:
100% Bolt On Kit - The turbo kit comes with all the required gaskets and fitting accessories for a true bolt on application out of the box, so it can be installed immediately without the need to hunt for other parts.
1 Year Warranty - The turbo kit comes with 1 year limited warranty after the product has been registered with Tomei Powered shortly after purchase.
