Tomei ARMS BX7960 B/B Turbo Kit For Nissan Silvia 180SX S13 S14 S15 SR20DET

SKU TM-TB403A-NS08A
Sold out
Original price $ 1,780.00
Original price $ 1,780.00 - Original price $ 1,780.00
Original price $ 1,780.00
Current price $ 1,602.00
$ 1,602.00 - $ 1,602.00
Current price $ 1,602.00

We usually ship all orders within 1 day unless there is an issue with the order. In that case, we will contact you to find the best solution.

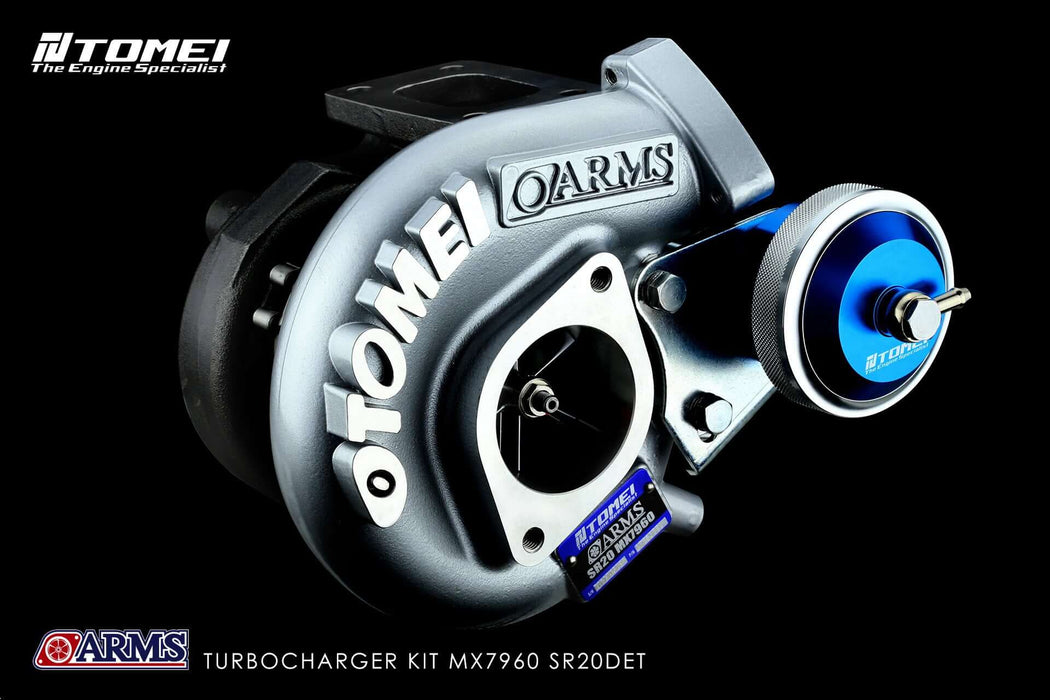

Tomei ARMS BX7960 B/B Turbo Kit for Nissan Silvia S13, S14, S15, 180SX

Engine: SR20DET

Part#: TB403A-NS08A

Turbo Specs:

Target HP: 400
Bearing Type: Ball Bearing
Initial boost Setting: 1.0kgf/cm2

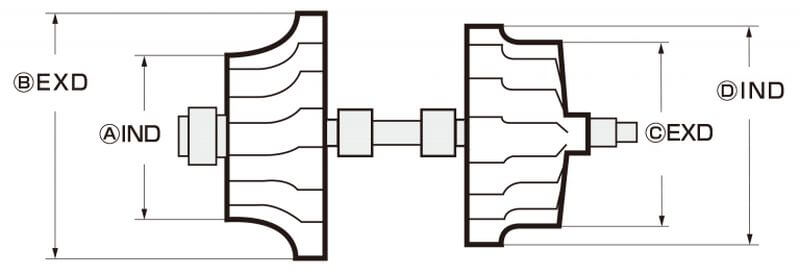

Compressor Wheel: (See Picture)
#A IND: 52.6mm / #B EXD: 68.0mm
Trim: 60
Blades: 6/6
Material: A2618
Production: CNC Billet

Turbine Wheel: (See Picture)
#C EXD: 54.0mm / #D IND: 61.0mm
Trim: 79
Blades: 9
Material: K418
Production: Cast

Compressor Housing:
IND: 53.5mm
EXD: 38.75mm
A/R: 0.62

Turbine Housing:
IND: T25
EXD: SR20DET
A/R: 0.57

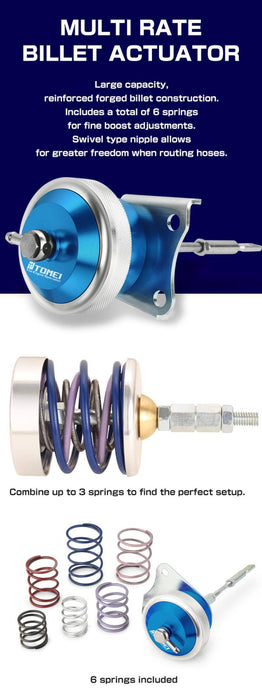

Actuator:
Vacuum Fitting Type: Swivel Nipple
Springs: 6 Springs for find boost adjustments
Production: CNC Billet

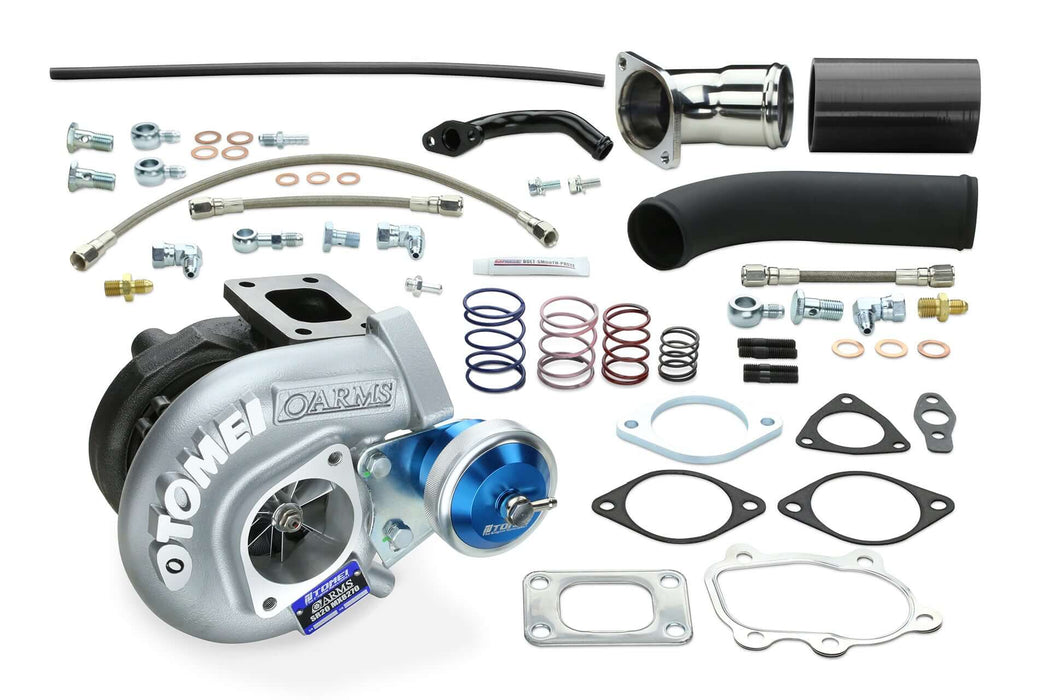

Turbo kit Includes:
100% Bolt On Kit - The turbo kit comes with all the required gaskets and fitting accessories for a true bolt on application out of the box, so it can be installed immediately without the need to hunt for other parts.
1 Year Warranty - The turbo kit comes with 1 year limited warranty after the product has been registered with Tomei Powered shortly after purchase.
