Tomei ARMS BX8260 B/B Turbo Kit For Nissan GTR BNR32, BCNR33, BNR34 RB26DETT

Save 10% Save 10%
Original price $ 3,280.00
Original price $ 3,280.00 - Original price $ 3,280.00
Original price $ 3,280.00
Current price $ 2,952.00
$ 2,952.00 - $ 2,952.00
Current price $ 2,952.00

We are one of Tomei authorized dealers - Kure International, Inc., Please shop with confidence.

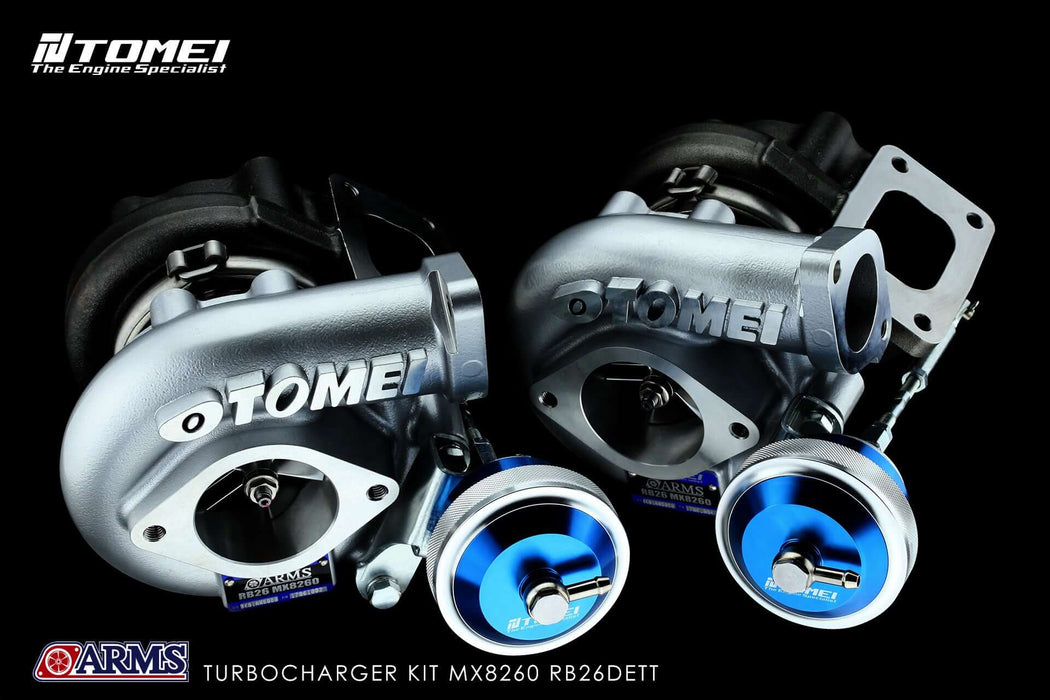

Tomei ARMS BX8260 B/B Turbo Kit for Nissan GTR GTR32, GTR33, GTR34

Engine: RB26DETT

Part#: TB403A-NS05B

Turbo Specs:

Target HP: 650
Bearing Type: Ball Bearing
Initial boost Setting: 1.0kgf/cm2

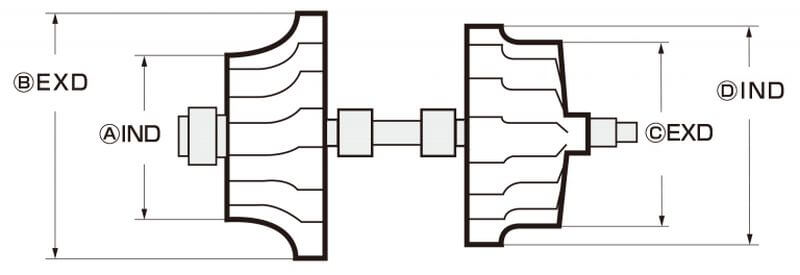

Compressor Wheel: (See Picture)
#A IND: 52.6mm / #B EXD: 68.0mm
Trim: 60
Blades: 6/6
Material: A2618
Production: CNC Billet

Turbine Wheel: (See Picture)
#C EXD: 58.8mm / #D IND: 67.0mm
Trim: 77
Blades: 9
Material: K418
Production: Cast

Compressor Housing:
IND: 53.5mm
EXD: 38.75mm
A/R: 0.74

Turbine Housing:
IND: T25
A/R: 0.73

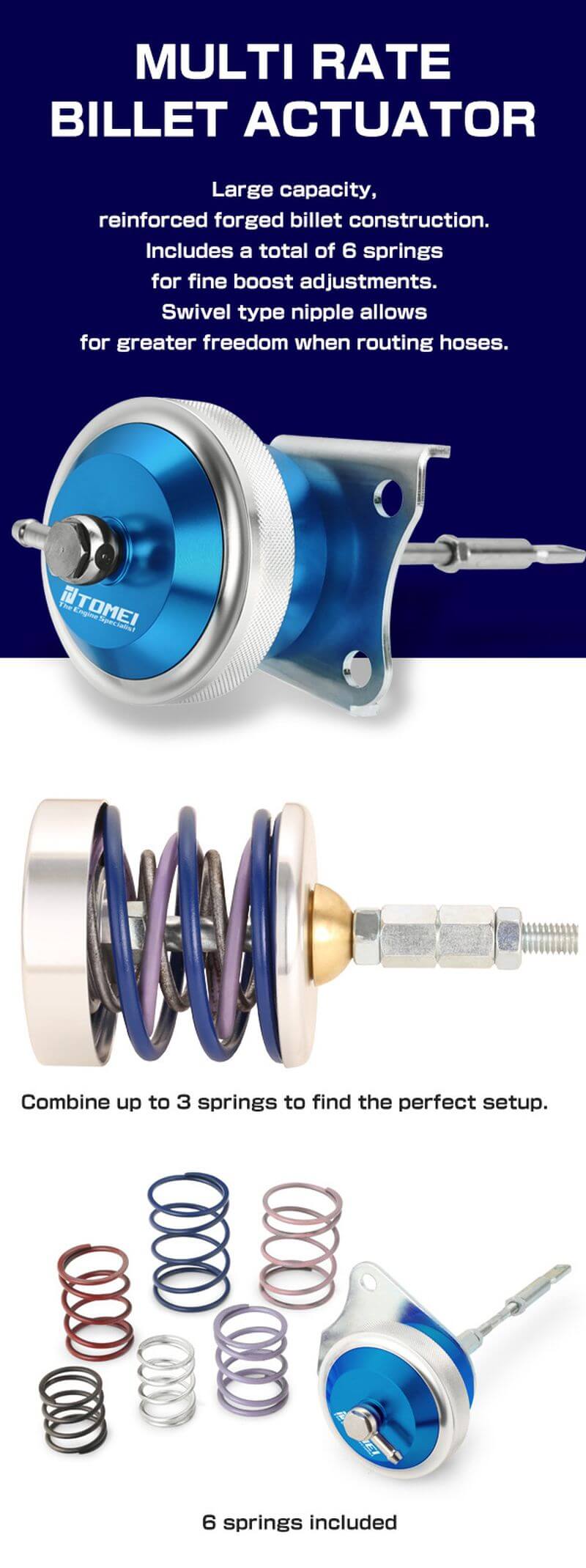

Vacuum Fitting Type: Swivel Nipple
Springs: 8 Springs for find boost adjustments
Production: CNC Billet

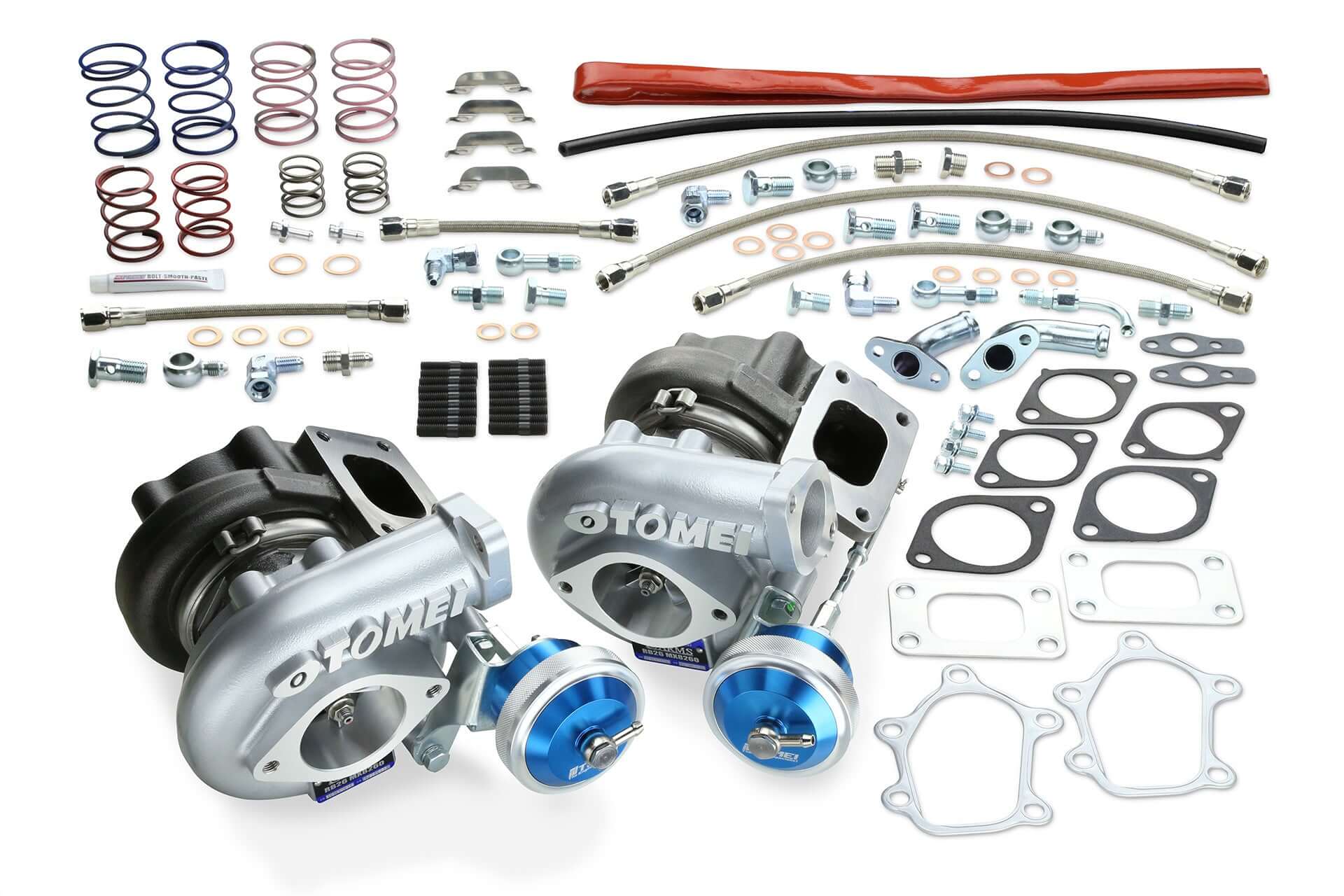

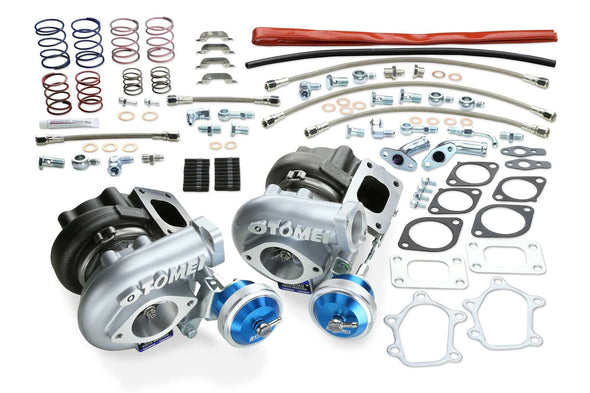

Turbo kit Includes:
100% Bolt On Kit - The turbo kit comes with all the required gaskets and fitting accessories for a true bolt on application out of the box, so it can be installed immediately without the need to hunt for other parts.
1 Year Warranty - The turbo kit comes with 1 year limited warranty after the product has been registered with Tomei Powered shortly after purchase.
