Description

Tomei ARMS BX8265 B/B Turbo Kit for Nissan Skyline R32, R33, R34

Engine: RB25DET

Part#: TB403A-NS06A

Turbo Specs:

Target HP: 450
Bearing Type: Ball Bearing
Initial boost Setting: 1.0kgf/cm2

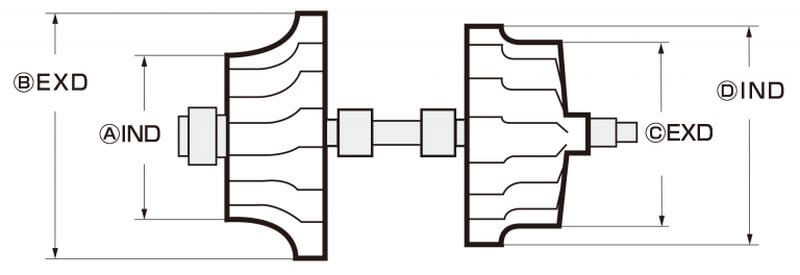

Compressor Wheel: (See Picture)
#A IND: 54.8mm / #B EXD: 76.2mm
Trim: 52
Blades: 6
Material: A2618
Production: CNC Billet

Turbine Wheel: (See Picture)
#C EXD: 58.8mm / #D IND: 67.0mm
Trim: 77
Blades: 9
Material: K418
Production: Cast

Compressor Housing:
IND: 55.8mm
EXD: 42.62mm
A/R: 0.57

Turbine Housing:
IND: T3
EXD: RB25DET
A/R: 0.57

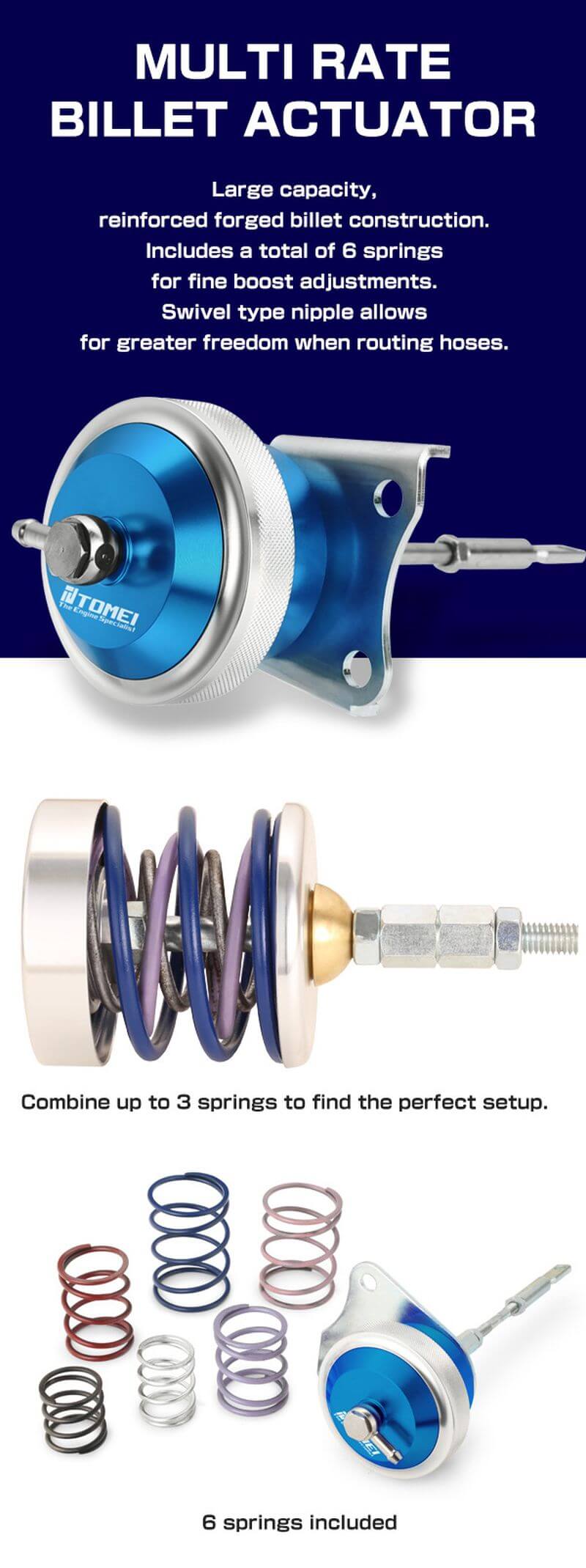

Actuator:
Vacuum Fitting Type: Swivel Nipple
Springs: 6 Springs for find boost adjustments
Production: CNC Billet

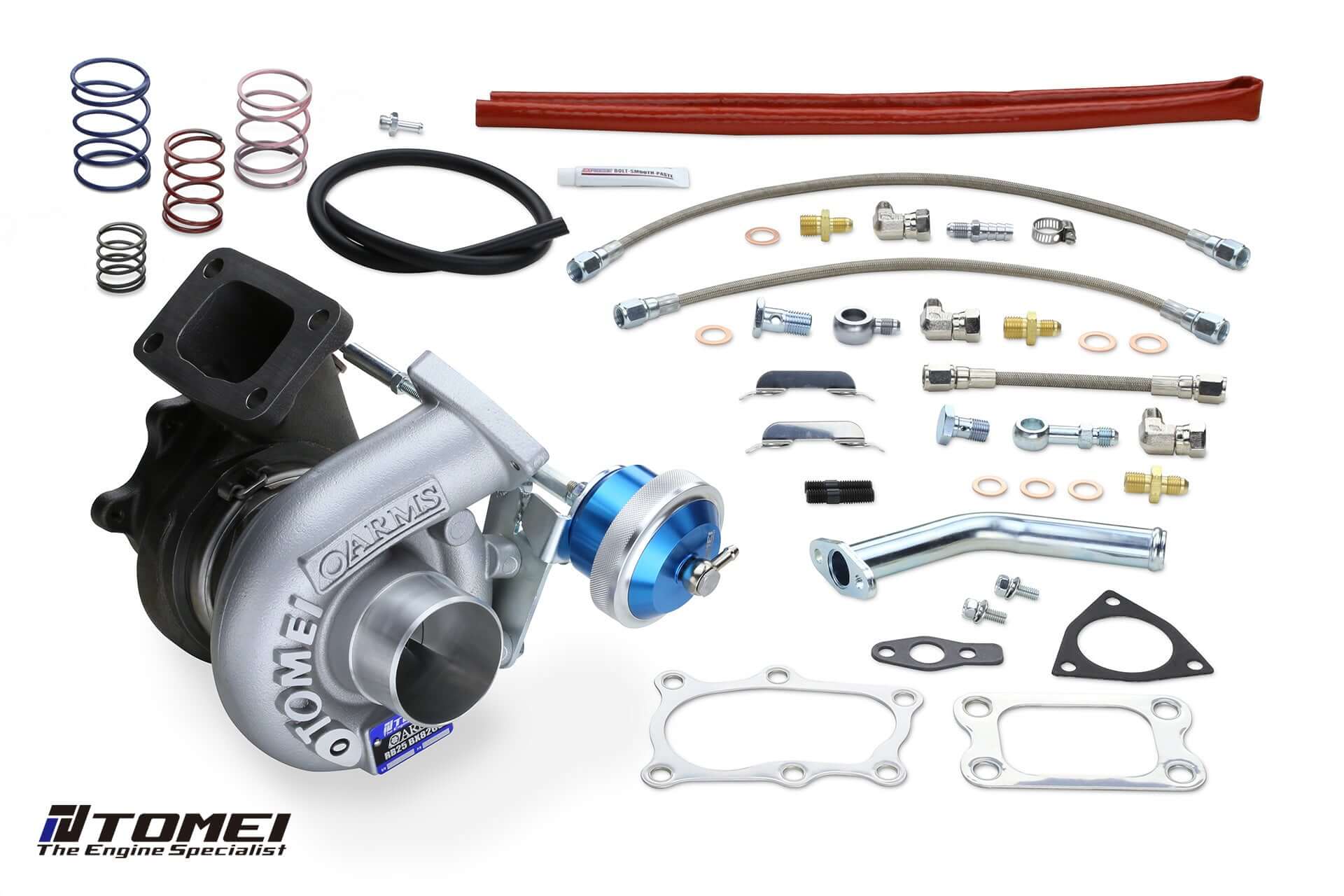

Turbo kit Includes:
100% Bolt On Kit - The turbo kit comes with all the required gaskets and fitting accessories for a true bolt on application out of the box, so it can be installed immediately without the need to hunt for other parts.
1 Year Warranty - The turbo kit comes with 1 year limited warranty after the product has been registered with Tomei Powered shortly after purchase.
