Tomei ARMS MX7760 J/B Turbo Kit For Subaru WRX STI EJ20 EJ25 Single Scroll

Save 10% Save 10%
Original price $ 1,580.00
Original price $ 1,580.00 - Original price $ 1,580.00
Original price $ 1,580.00
Current price $ 1,422.00
$ 1,422.00 - $ 1,422.00
Current price $ 1,422.00

We are one of Tomei authorized dealers - Kure International, Inc., Please shop with confidence.

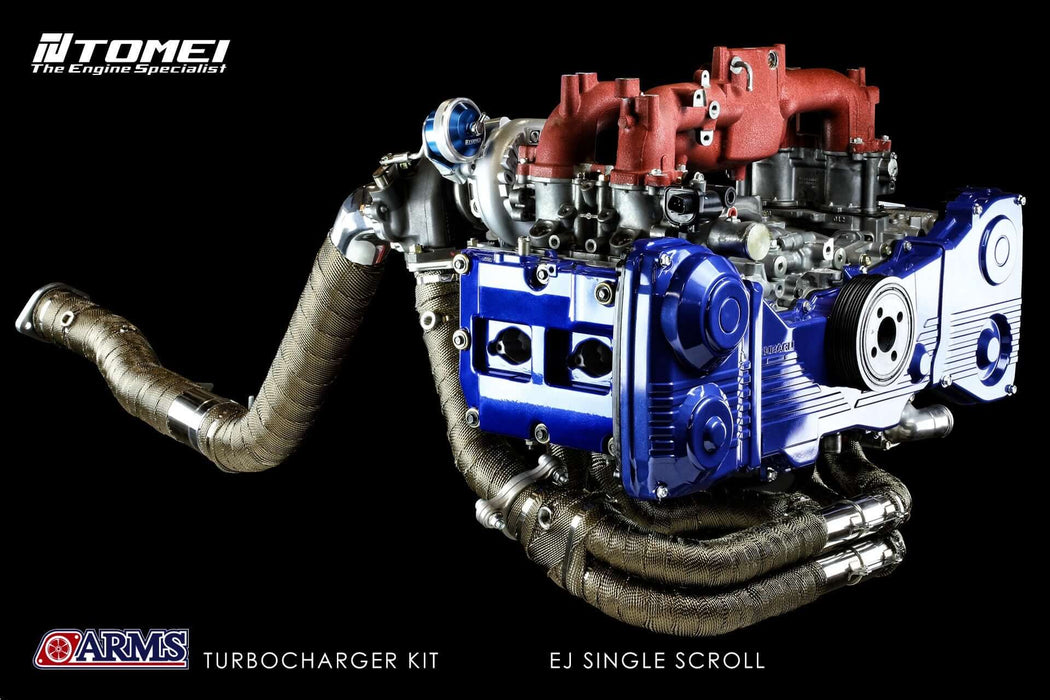

Tomei ARMS MX7760 J/B Turbo Kit for Subaru WRX STI

Engine: EJ20 / EJ25

Part#: TB401A-SB01A

Turbo Specs:

Target HP: 380
Bearing Type: Journal Bearing
Initial boost Setting: 1.0kgf/cm2

Compressor Wheel: (See Picture)
#A IND: 52.6mm / #B EXD: 68.0mm
Trim: 60
Blades: 6/6
Material: A2618
Production: CNC Billet

Turbine Wheel: (See Picture)
#C EXD: 49.1mm / #D IND: 56.0mm
Trim: 77
Blades: 12
Material: K418
Production: Cast

Compressor Housing:
IND: 53.6mm
EXD: 41.63mm
A/R: 0.78

Turbine Housing:
IND: 45.0
A/R: 0.57

Vacuum Fitting Type: Swivel Nipple

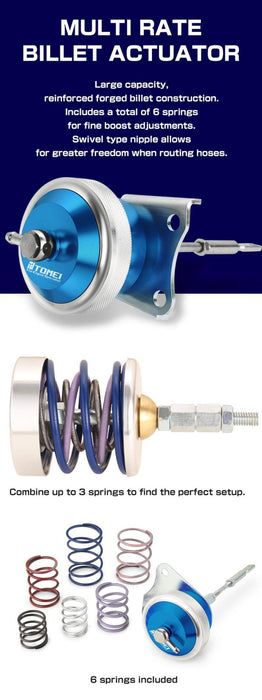

Springs: 6 Springs for find boost adjustments
Production: CNC Billet

Turbo kit Includes:
100% Bolt On Kit - The turbo kit comes with all the required gaskets and fitting accessories for a true bolt on application out of the box, so it can be installed immediately without the need to hunt for other parts.
1 Year Warranty - The turbo kit comes with 1 year limited warranty after the product has been registered with Tomei Powered shortly after purchase.

We usually ship all orders within 1 day unless there is an issue with the order. In that case, we will contact you to find the best solution.

Question about this product? Let us know!
