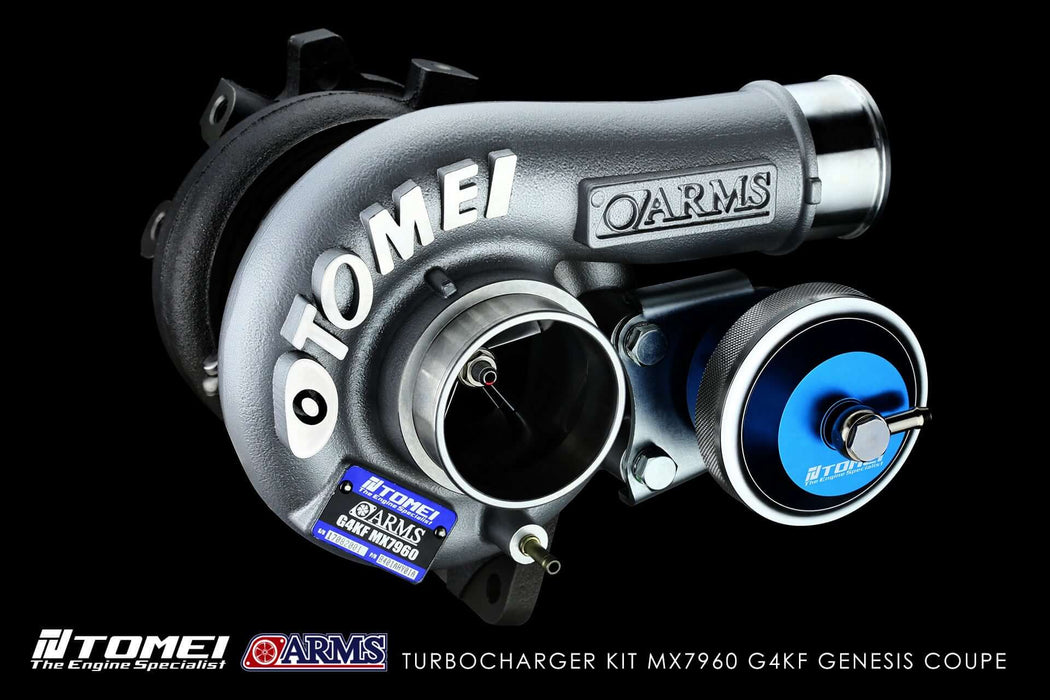

Tomei ARMS MX7960 J/B Turbo Kit for 2008-2012 Hyundai Genesis Coupe 2.0 Turbo Early Model G4KF

Engine: Theta Engine 2.0L Single Scroll Turbo

Part#: TB401A-HY01A

Turbo Specs:

Target HP: 400
Bearing Type: Journal Bearing
Initial boost Setting: 1.0kgf/cm2

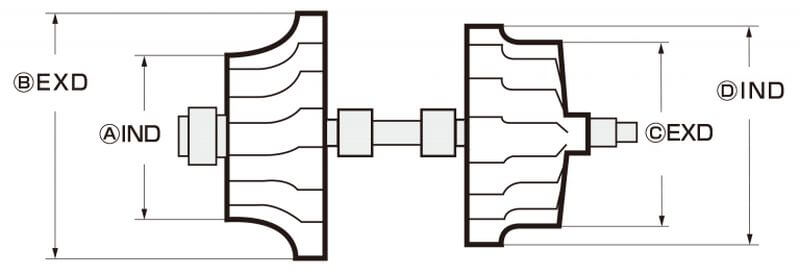

Compressor Wheel: (See Picture)
#A IND: 52.6mm / #B EXD: 68.0mm
Trim: 60
Blades: 6/6
Material: A2618
Production: CNC Billet

Turbine Wheel: (See Picture)
#C EXD: 54.0mm / #D IND: 61.0mm
Trim: 79
Blades: 11
Material: K418
Production: Cast

Compressor Housing:
IND: 55.5mm
EXD: 41.7mm
A/R: 0.73

Turbine Housing:
IND: 52.0mm
EXD: 66.0mm
A/R: 0.57

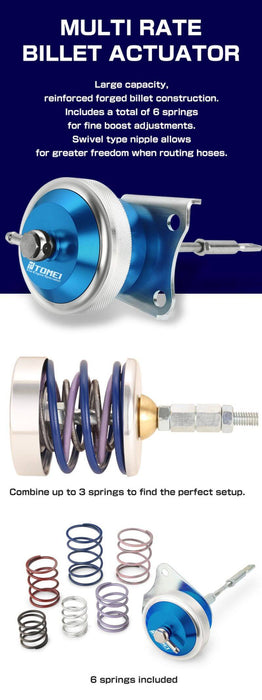

Vacuum Fitting Type: Swivel Nipple
Springs: 6 Springs for find boost adjustments
Production: CNC Billet

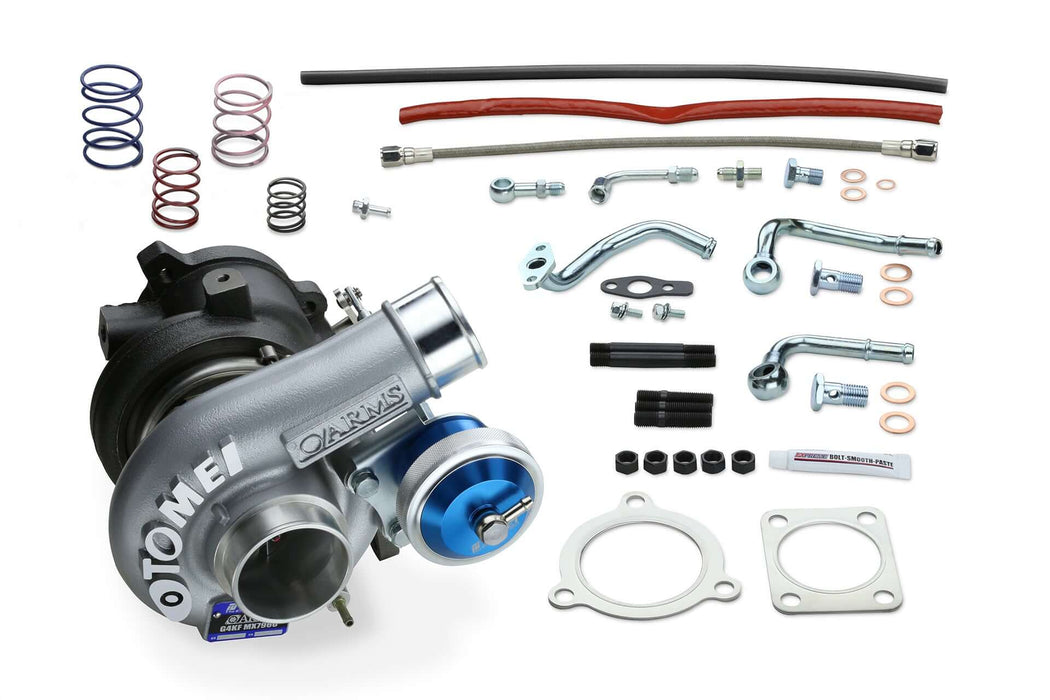

Turbo kit Includes:
100% Bolt On Kit - The turbo kit comes with all the required gaskets and fitting accessories for a true bolt on application out of the box, so it can be installed immediately without the need to hunt for other parts.
1 Year Warranty - The turbo kit comes with 1 year limited warranty after the product has been registered with Tomei Powered shortly after purchase.
