Description

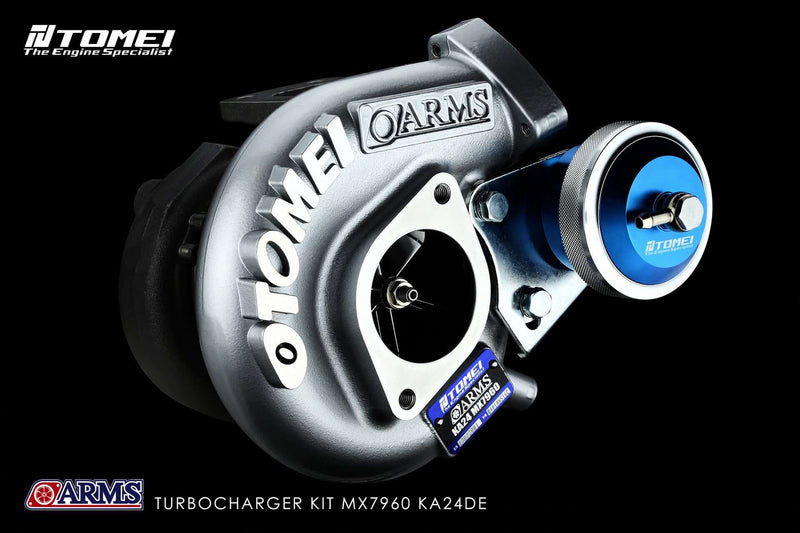

Tomei ARMS MX7960 J/B Turbo Kit for Nissan 240SX

Engine: KA24DE

Note: Tomei KA24DE turbo manifold and SR20DET exhaust components is required to use this turbo

Part#: TB401A-NS016C

Turbo Specs:

Target HP: 400
Bearing Type: Journal Bearing
Initial boost Setting: 1.0kgf/cm2

Compressor Wheel: (See Picture)
#A IND: 52.6mm / #B EXD: 68.0mm
Trim: 60
Blades: 6/6
Material: A2618
Production: CNC Billet

Turbine Wheel: (See Picture)
#C EXD: 54.0mm / #D IND: 61.0mm
Trim: 79
Blades: 11
Material: K418
Production: Cast

Compressor Housing:
IND: 53.5mm
EXD: 38.75mm
A/R: 0.62

Turbine Housing:
IND: T25
EXD: SR20DET
A/R: 0.57

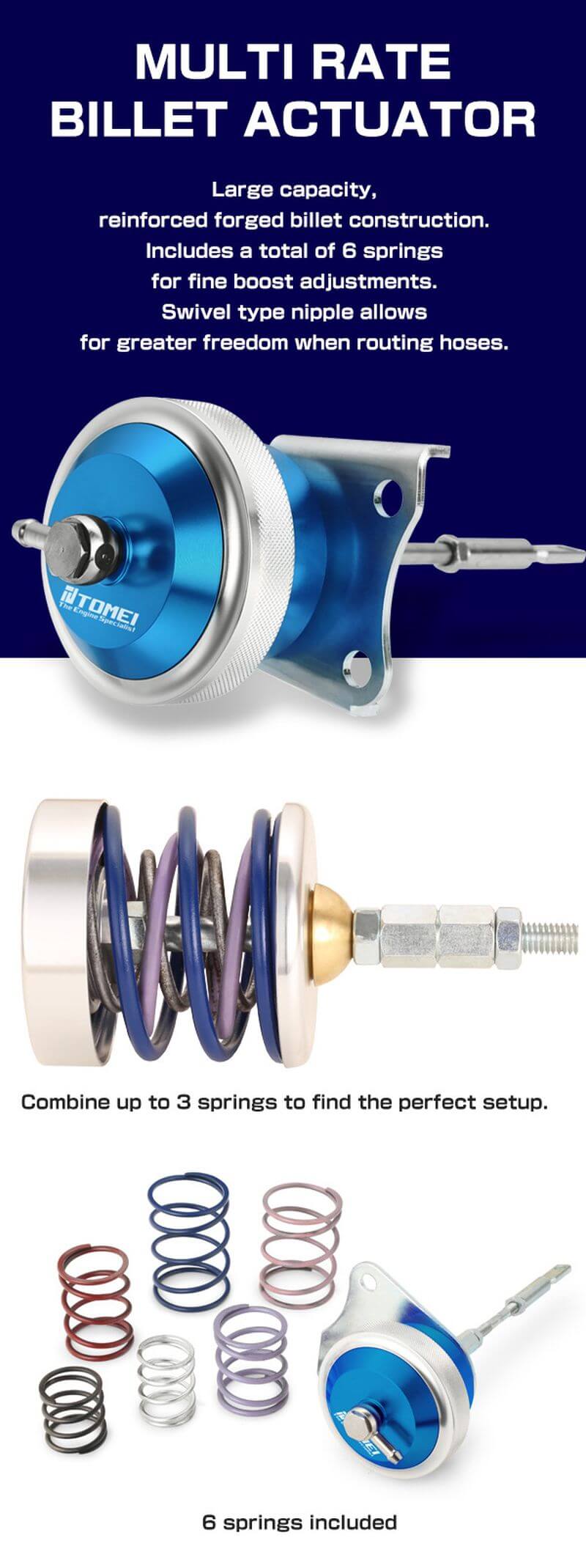

Actuator:
Vacuum Fitting Type: Swivel Nipple
Springs: 6 Springs for find boost adjustments
Production: CNC Billet

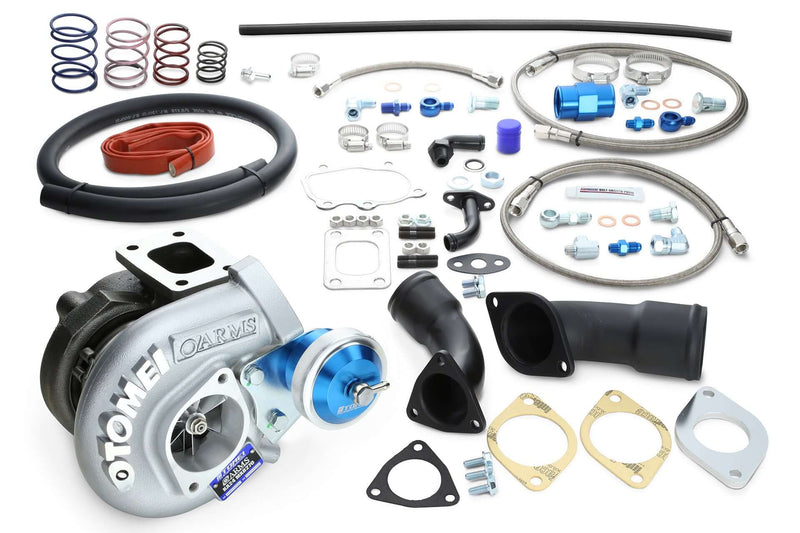

Turbo kit Includes:
The turbo kit comes with all the required gaskets and fitting accessories
1 Year Warranty - The turbo kit comes with 1 year limited warranty after the product has been registered with Tomei Powered shortly after purchase.
