Tomei ARMS MX7967 J/B Turbo Kit for Mitsubishi EVO 4 to 9

Engine: 4G63

Part#: TB401A-MT01B

Turbo Specs:

Target HP: 430
Bearing Type: Journal Bearing
Initial boost Setting: 1.0kgf/cm2

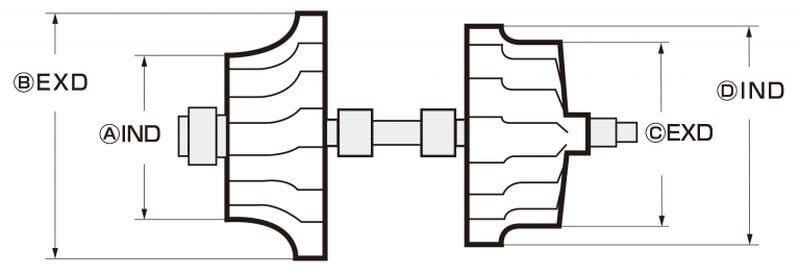

Compressor Wheel: (See Picture)
#A IND: 56.3mm / #B EXD: 75.0mm
Trim: 56
Blades: 6/6
Material: A2618
Production: CNC Billet

Turbine Wheel: (See Picture)
#C EXD: 54.0mm / #D IND: 61.0mm
Trim: 79
Blades: 11
Material: K418
Production: Cast

Compressor Housing:
IND: 60.63mm
EXD: 50.0mm
A/R: 0.78

Turbine Housing:
IND: 4G63
EXD: 4G63
A/R: 0.77

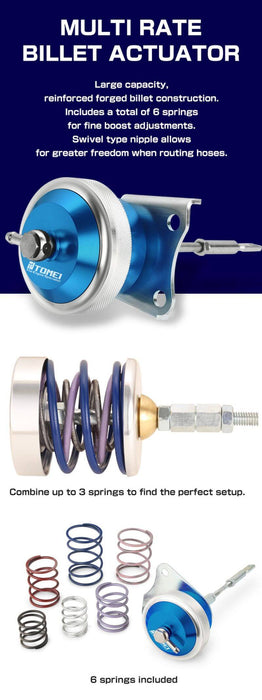

Actuator:
Vacuum Fitting Type: Swivel Nipple
Springs: 6 Springs for find boost adjustments
Production: CNC Billet

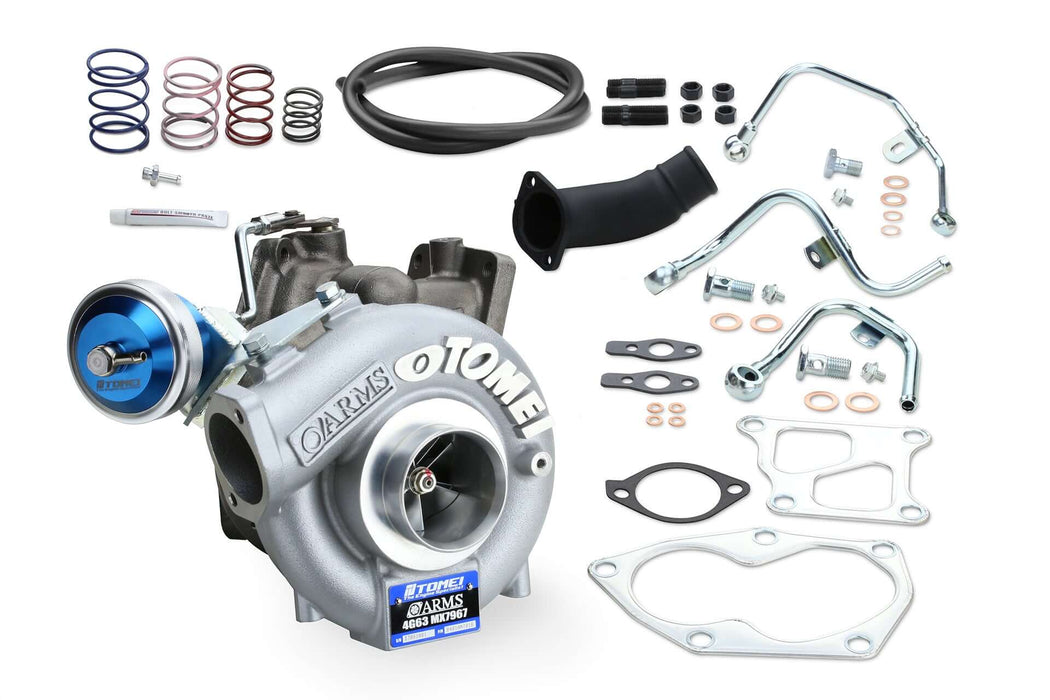

Turbo kit Includes:
100% Bolt On Kit - The turbo kit comes with all the required gaskets and fitting accessories for a true bolt on application out of the box, so it can be installed immediately without the need to hunt for other parts.
1 Year Warranty - The turbo kit comes with 1 year limited warranty after the product has been registered with Tomei Powered shortly after purchase.
