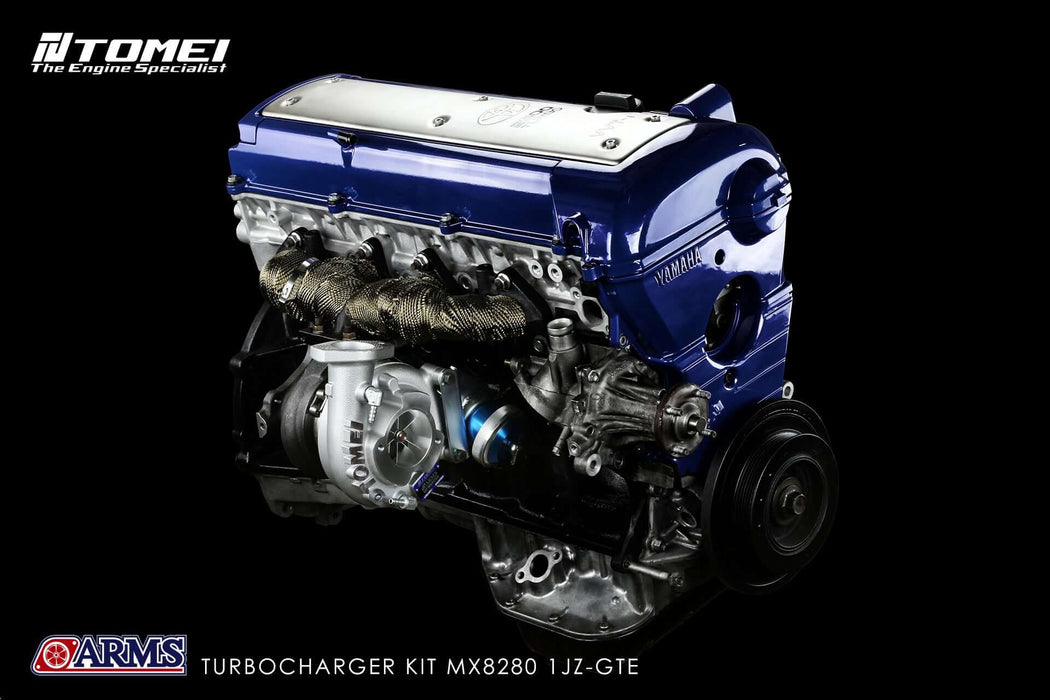

Tomei ARMS MX8280 J/B Turbo Kit For Toyota 1JZ-GTE VVTi Chaser Cresta Mark II

Save 10% Save 10%
Original price $ 1,580.00
Original price $ 1,580.00 - Original price $ 1,580.00
Original price $ 1,580.00
Current price $ 1,422.00
$ 1,422.00 - $ 1,422.00
Current price $ 1,422.00

We are one of Tomei authorized dealers - Kure International, Inc., Please shop with confidence.

Tomei ARMS MX8280 J/B Turbo Kit for Toyota JZX100 / JZX110 / JZX110W / JZZ30 Late Model / JZS171 / JZS171W

Engine: 1JZ-GTE

Part#: TB401A-TY04A

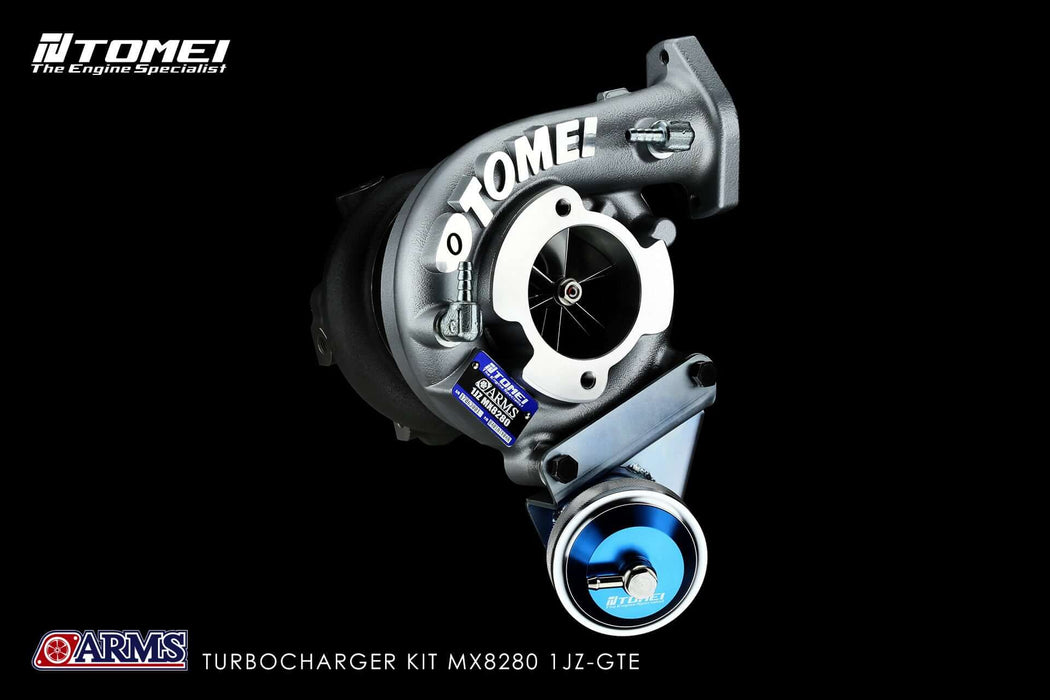

Turbo Specs:

Target HP: 450
Bearing Type: Journal Bearing
Initial boost Setting: 1.0kgf/cm2

Compressor Wheel: (See Picture)
#A IND: 61.4mm / #B EXD: 82.0mm
Trim: 56
Blades: 6/6
Material: A2618
Production: CNC Billet

Turbine Wheel: (See Picture)
#C EXD: 58.8mm / #D IND: 67.0mm
Trim: 77
Blades: 11
Material: K418
Production: Cast

Compressor Housing:
IND: 62.4mm
EXD: 45.46mm
A/R: 0.54

Turbine Housing:
IND: 47.89
EXD: 1JZ
A/R: 0.67

Actuator:
Vacuum Fitting Type: Swivel Nipple
Springs: 6 Springs for find boost adjustments
Production: CNC Billet

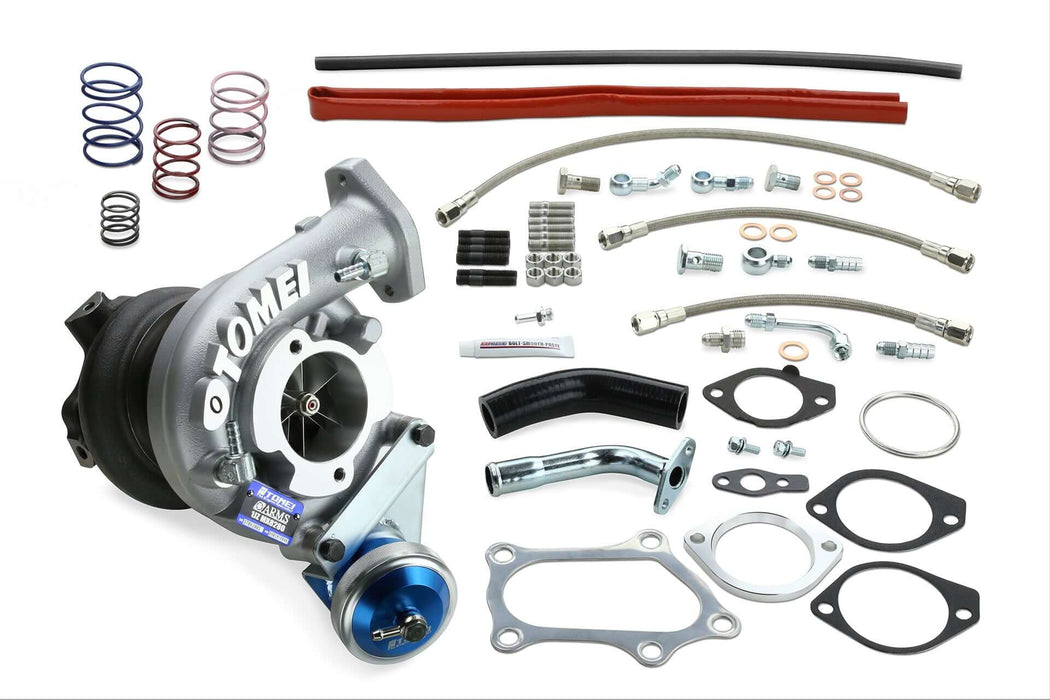

Turbo kit Includes:
100% Bolt On Kit - The turbo kit comes with all the required gaskets and fitting accessories for a true bolt on application out of the box, so it can be installed immediately without the need to hunt for other parts.
1 Year Warranty - The turbo kit comes with 1 year limited warranty after the product has been registered with Tomei Powered shortly after purchase.
