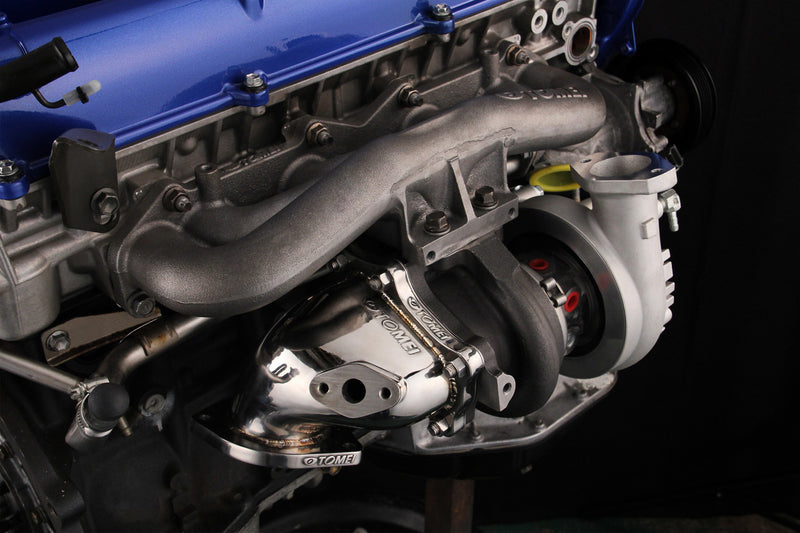

Tomei Expreme Turbine Outlet Pipe

Model: Toyota - JZX100 / JZX110 / JZX110W / JZZ30 LATE MODEL / JZS171 / JZS171W

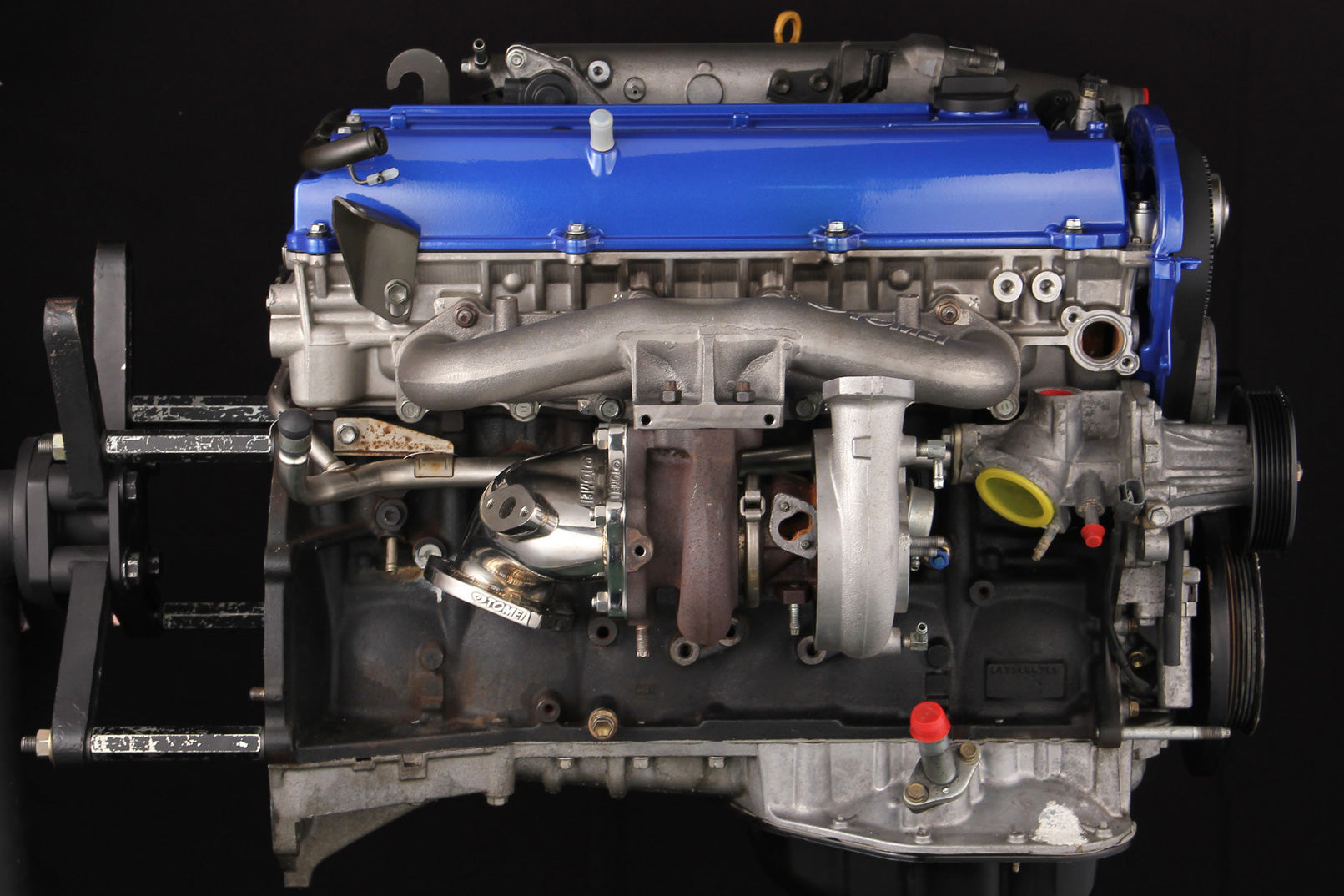

Engine: 1JZ-GTE *Single Turbo

TM-TB6020-TY04A Specs:

Material: Full SUS304 (Stock: Steel)
Exit Diameter: 76.3mm
Volume: 810cc
Flange Thickness: 12mm
Weight 1.8kg (STD: 2.5kg)

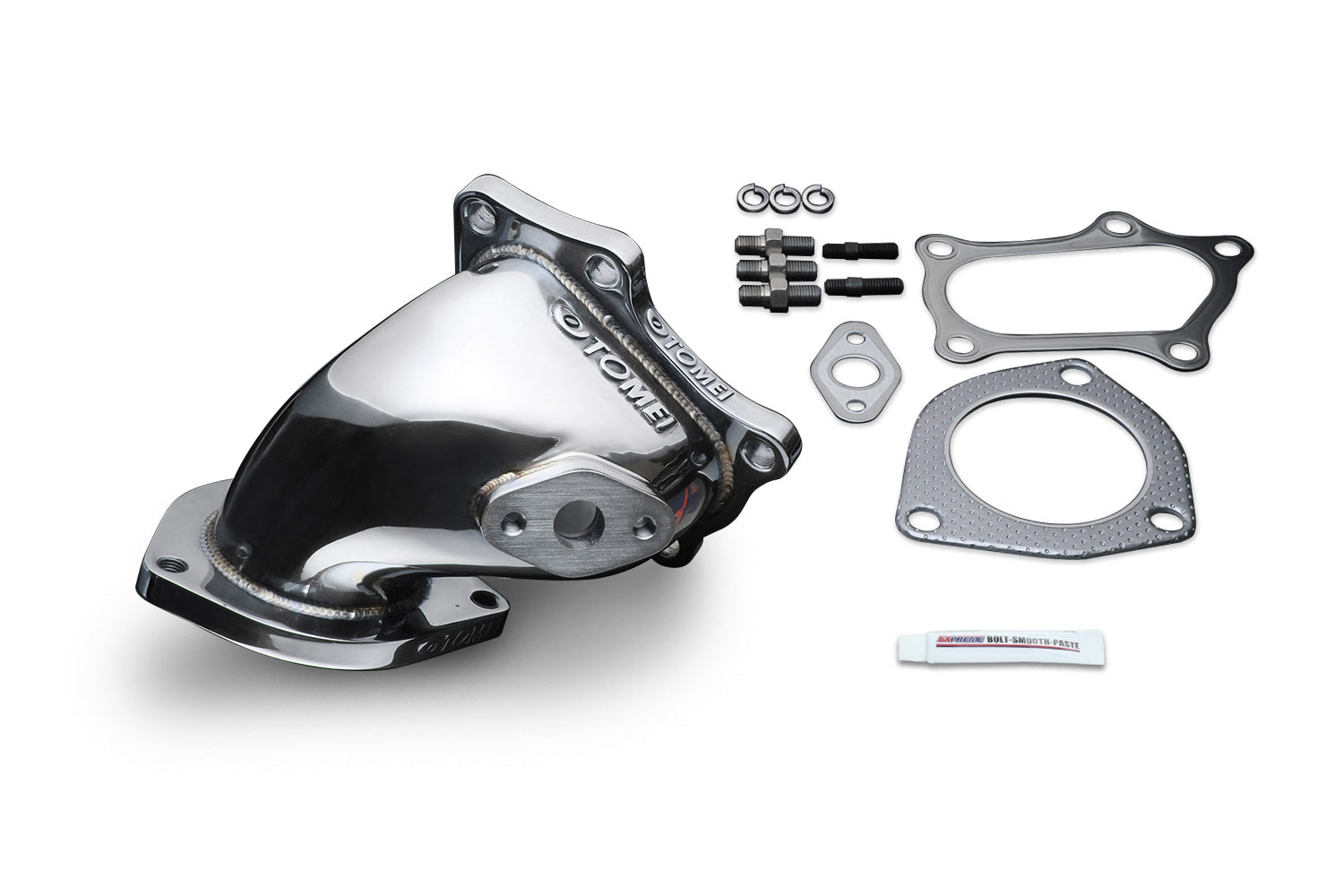

Turbine Outlet Component
Gasket (Turbo Side)
Gasket (Catalyzer)
Copper Washer
Stud Bolt
Flange Nut
Sticker (Expreme)
Bolt Smooth Paste
Installation Manual

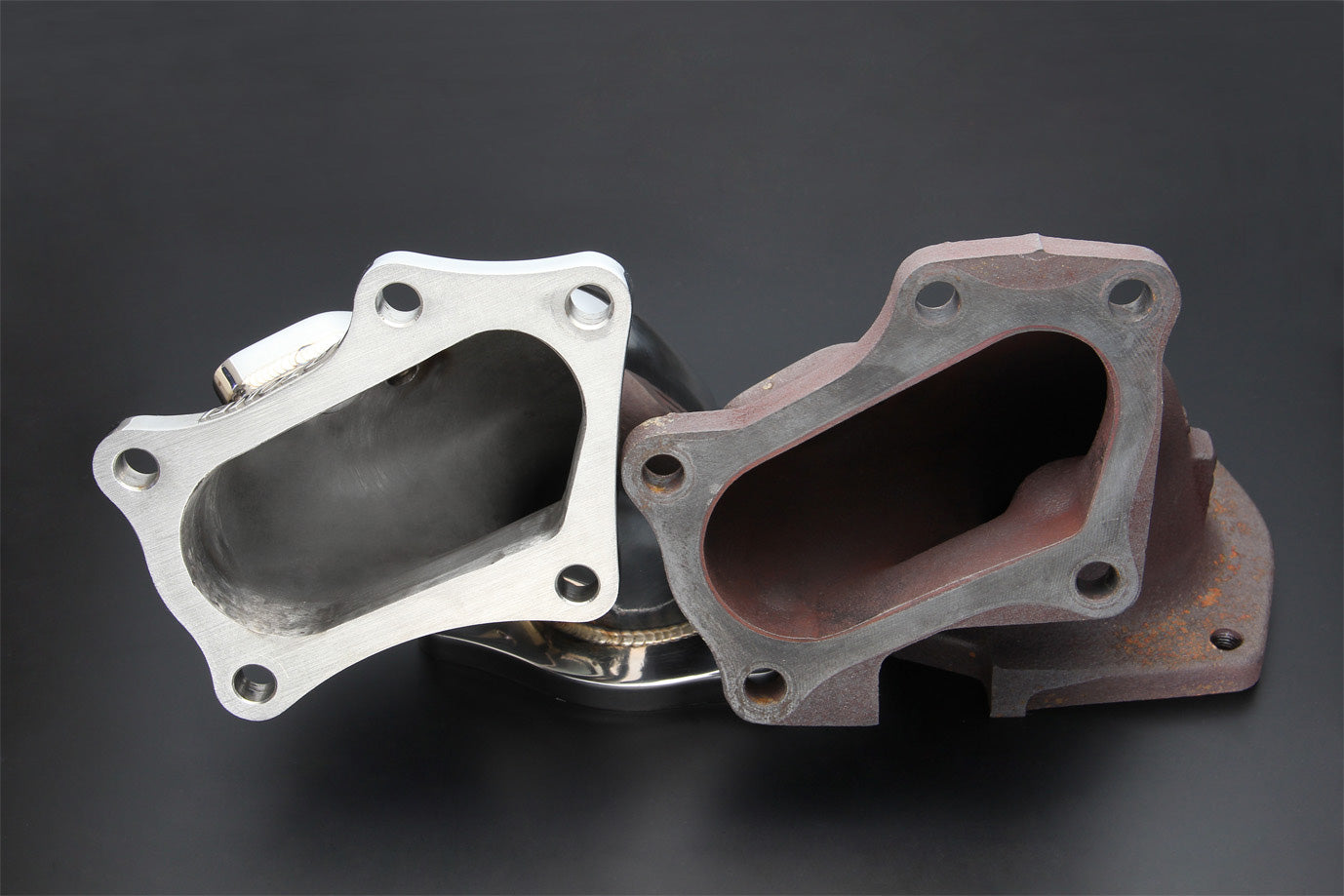

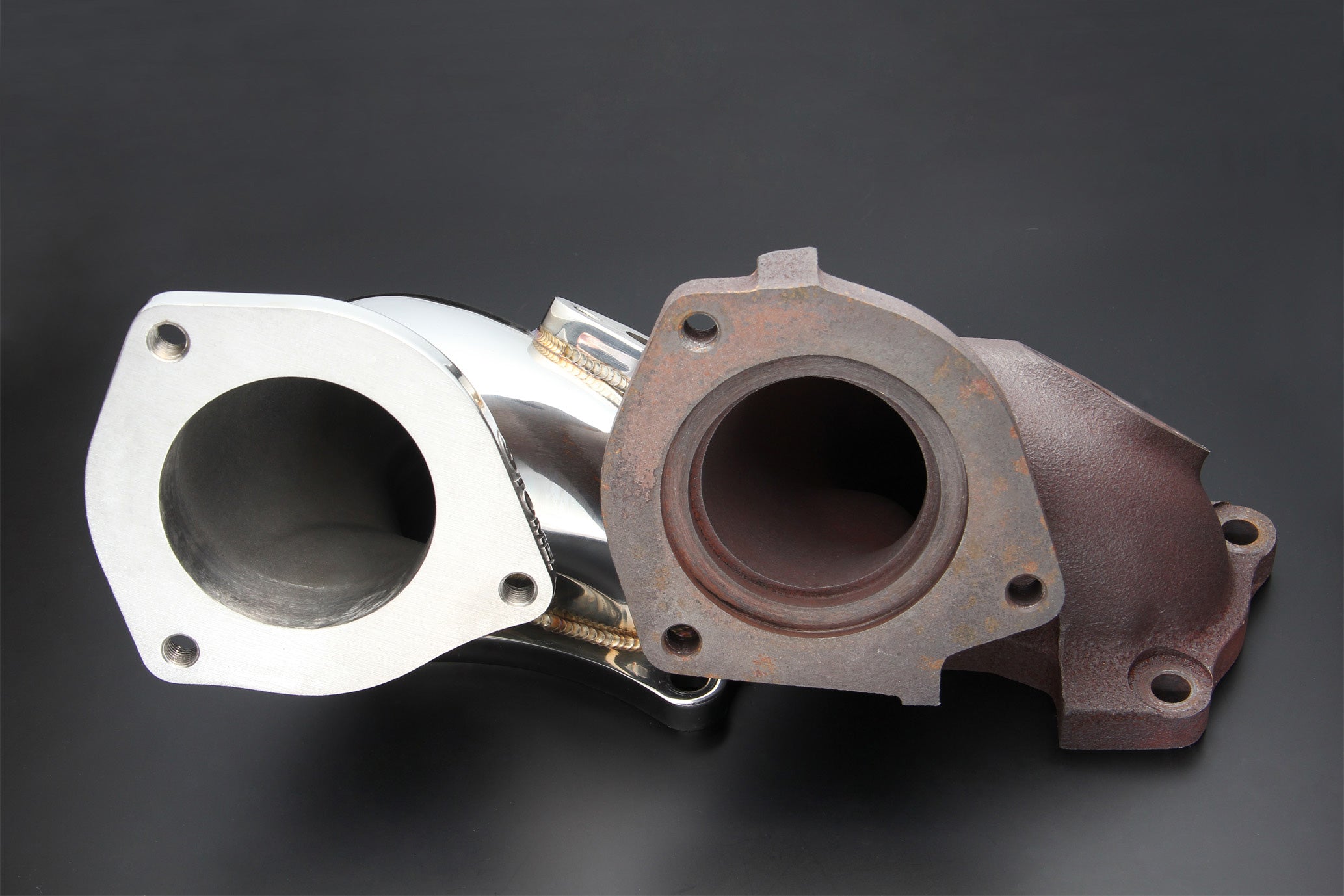

The internal shape is made smooth to optimize the large volumetric gas flow. With a well designed flange for ease of installation. This products design will maximize the Tomei ARMS Turbos performance potential. It was designed with the exit diameter of 76.3mm, yet with the same flange bolt pattern of the stock front pipe.

Note: This outlet pipe is only compatible with 1JZ-GTE Single Turbo, not twin turbo. Please check your flange size. Tomei outlet pipe is designed for replacement of stock outlet pipe.

For Offroad Use Only
