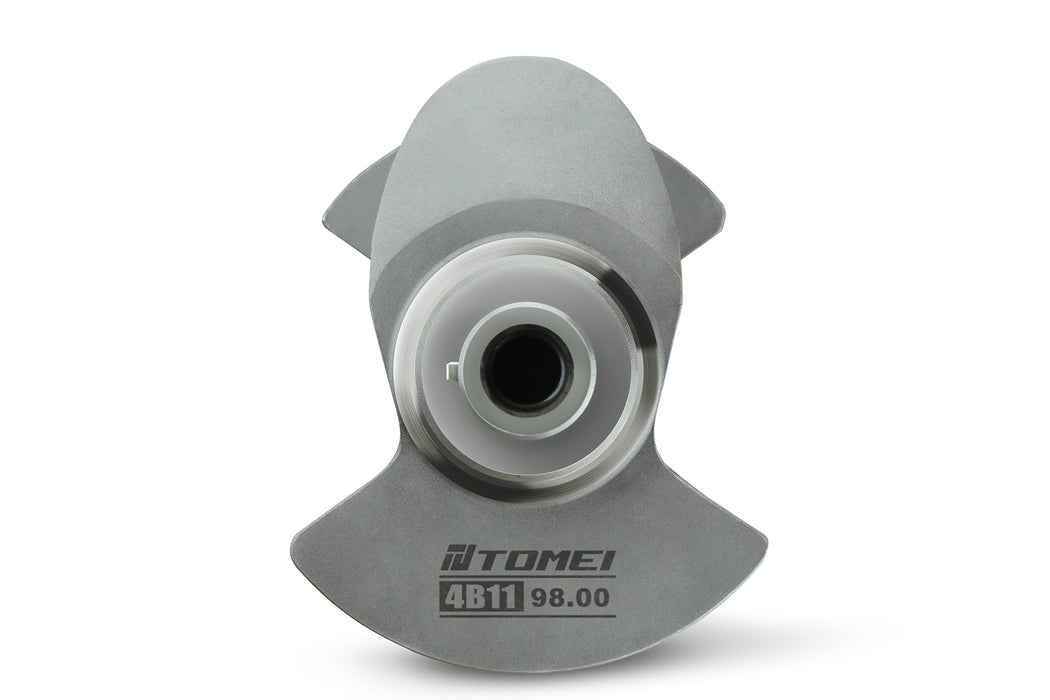

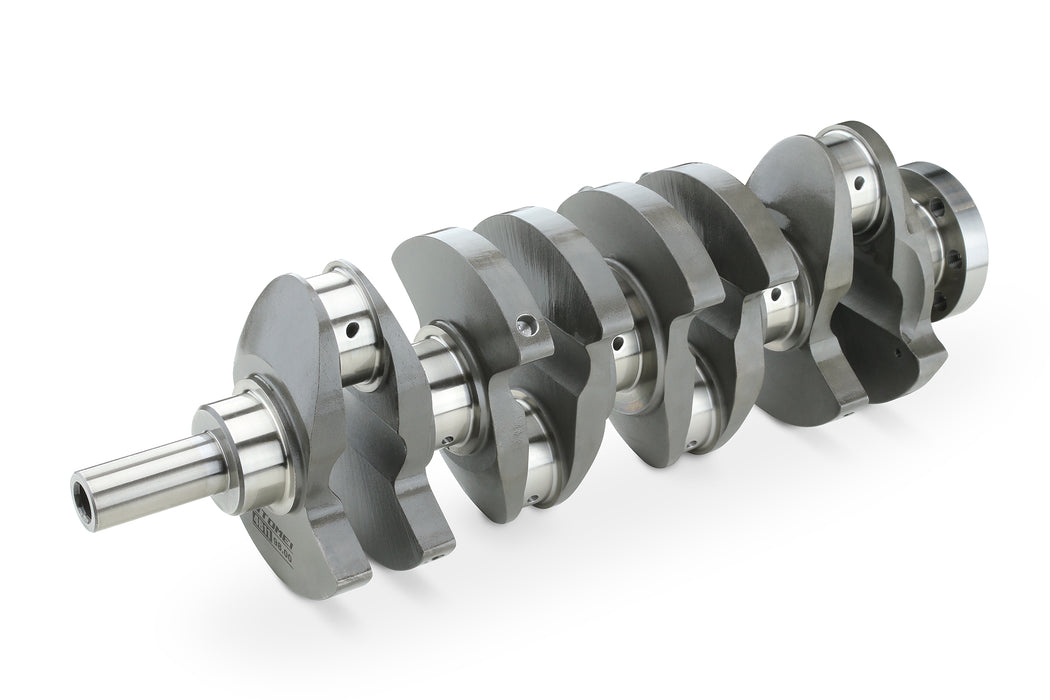

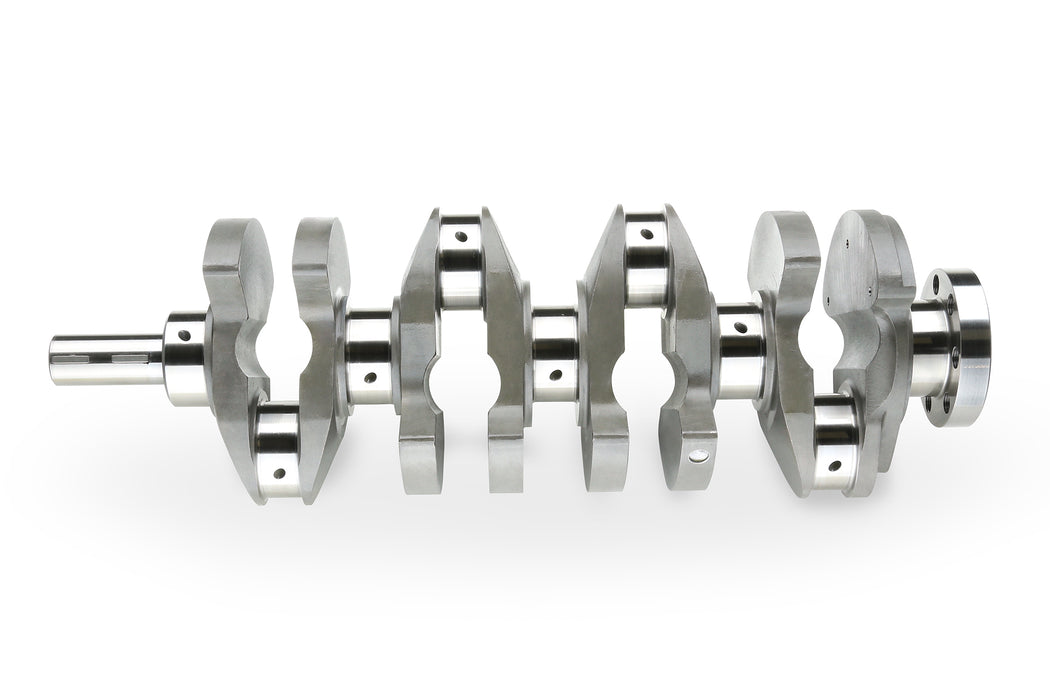

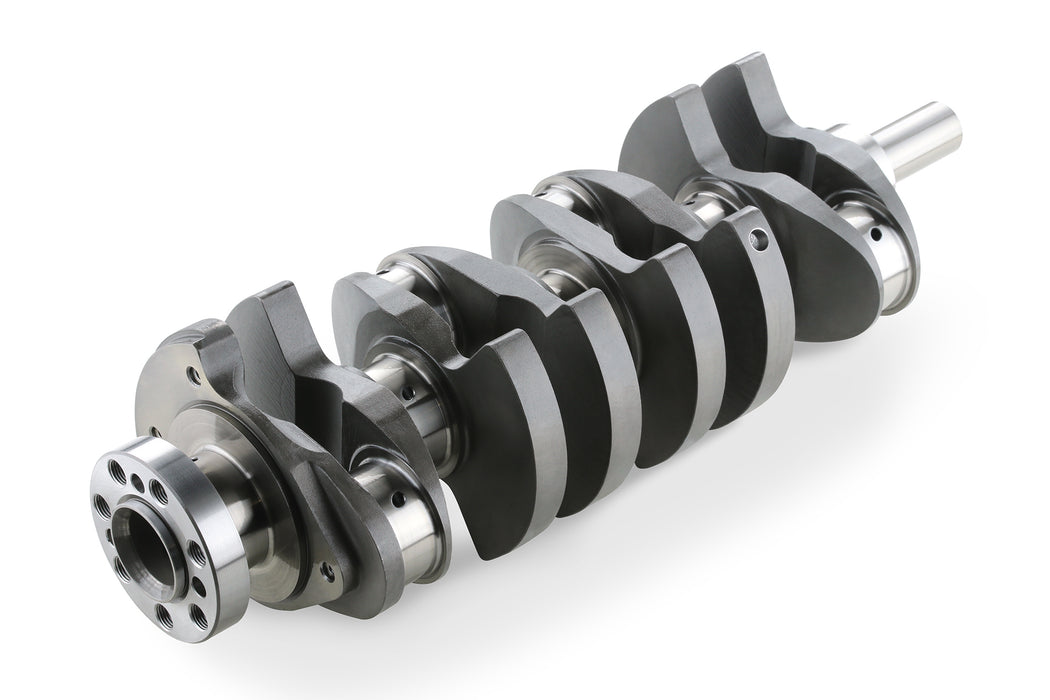

Designed For Upgrade 4B11 2.3L Engine Full Counterweight Crankshaft


Engine: 4B11

Model (L): 2.3

Stroke (mm): 98.0 (Stock +12.0)

Crank Pin (mm): 52.0

Main Journal (mm): 52.0

Counterweight: Full (8)

Material: 4340

Surface Treatment: Nitriding

Weight (kg): 16.8

Note: Crankshaft Only / Special Pistons and Connecting Rods are required For This Crankshaft

If you have any question about this product, please send us message!!!

Tomei Crankshaft:

Crankshaft is the parts that change vertical movement of a piston into rotational movement.
It is suffered from explosion load and inertia power, and the load by bend vibration or torsion vibration.

Development target:

Balance rate / Reduction of inertia mass / Stable oil delivery and lubrication / Precision of pin and journal / Reduction of stirring-resistance
