Description

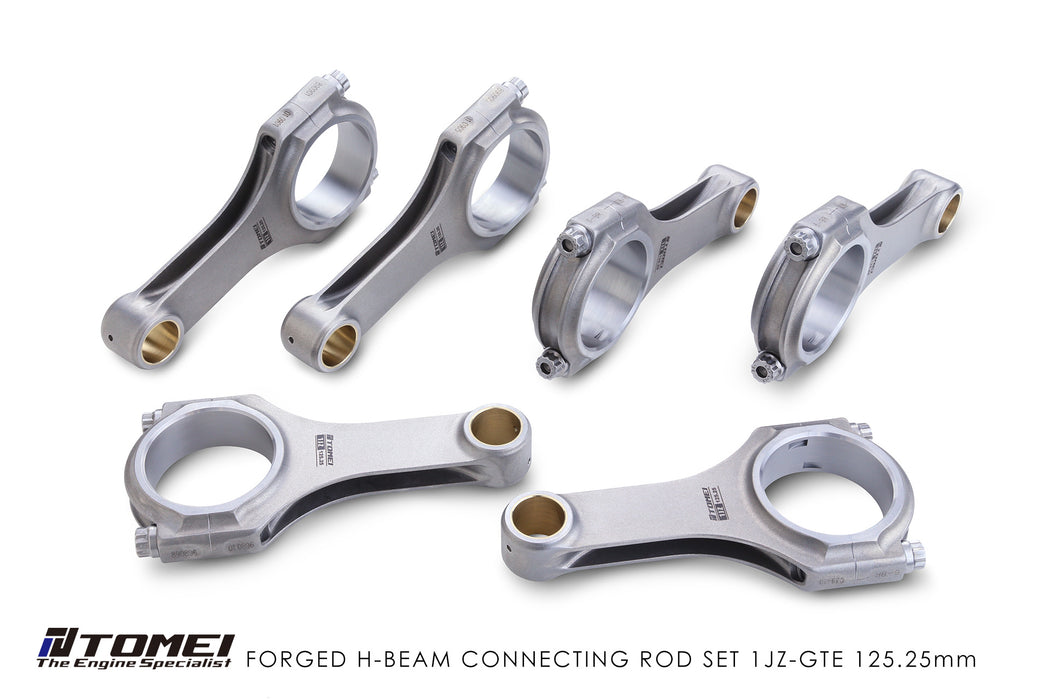

Application: For Toyota 1JZ-GTE

Connecting Rod Spec. - TM-TA203A-TY04A
Length: 125.25mm - STD Type Connecting Rods
Large Diameter x Length (DxB): 55 x 26.0mm
Small Diameter x Length (DxB): 22 x 26.0mm
Material: SNCM439
Forged H-Beam Design
Twin Oil Orifice

Conrod Bolt
Bolt Size: 3/8-24
Height Under Neck: 40mm

Conrod Bearing
Inner Circum.(mm): 52mm
Bearing Width (mm): 19.0mm

The connecting rods role is to transfer the compressed pressure that the piston receives to the crankshaft. When the connecting rod becomes one with the piston the connecting rods inertial weight and balance then plays a major factor in the smoothness of the engines rotation assembly and durability at high RPM. The weight factor itself will dramatically change the engines characteristics. The overall strength, balance and light weight properties that the TOMEI connecting rod design will take your engine to the next level.
