Description

Application: For Toyota 4AG

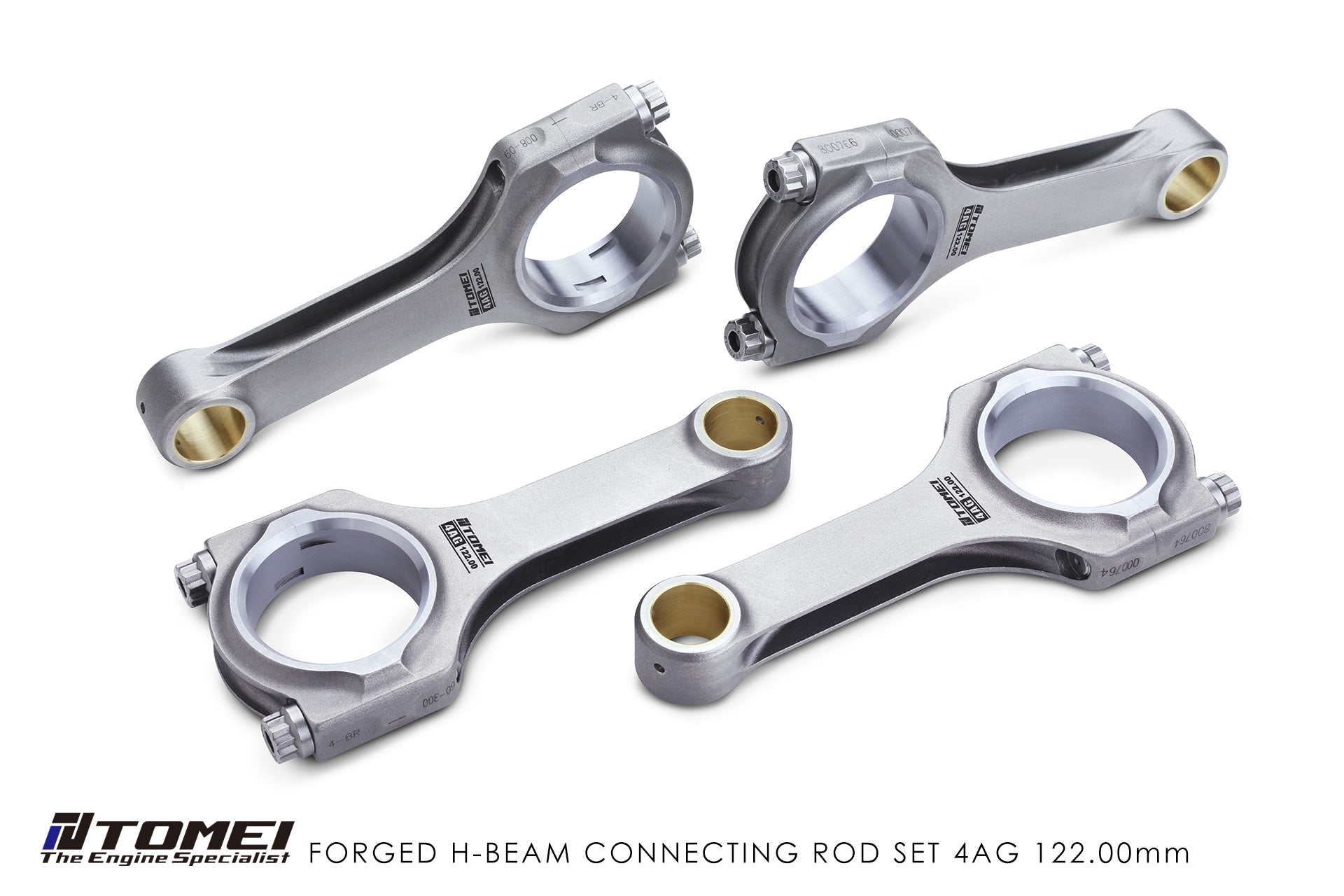

Connecting Rod Spec. - TM-TA203A-TY01A
Length: 122mm - STD Type Connecting Rod
Large Diameter x Length (DxB): 45 x 21.85mm
Small Diameter x Length (DxB): 20 x 21.85mm
Material: SNCM439
Forged H-Beam Design
Twin Oil Orifice

Conrod Bolt
Bolt Size: 3/8-24
Height Under Neck: 40mm

Conrod Bearing
Inner Circum.(mm): 42mm
Bearing Width (mm): 17.2mm

The connecting rods role is to transfer the compressed pressure that the piston receives to the crankshaft. When the connecting rod becomes one with the piston the connecting rods inertial weight and balance then plays a major factor in the smoothness of the engines rotation assembly and durability at high RPM. The weight factor itself will dramatically change the engines characteristics. The overall strength, balance and light weight properties that the TOMEI connecting rod design will take your engine to the next level.
